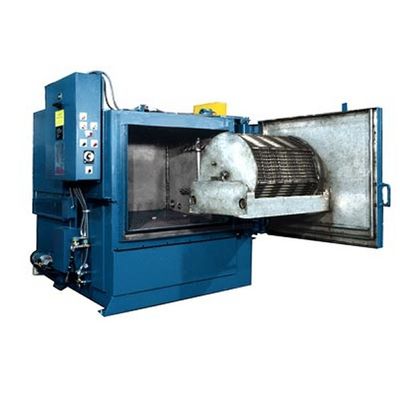

TUMBLER - Model MHT 6 -Retractable Tumbler Basket

• OSCILLATING NON-SYNCHRONOUS
• Angle of Oscillation: NA
• Frequency of Oscillation: 4 per minute
• Number of Wash Nozzles: 20
• Type of Nozzle: Vee-Jet
• Nozzle Material: 316 Stainless
• Nozzle Spray Pattern: 0 and 25 degrees

Width ( Standard Unit ): 83 inches
Depth ( Standard Unit ): 75 inches
Height: 76 inches
Empty Weight: 2,250 lbs
Reservoir Capacity: 166 gallons
Duplex Reservoir: Add 47 gallons
Sludge Capacity: 55 gallons

Tumbler Basket Diameter: 24 inches
Tumbler Basket Length: 34 inches
Tumbler Basket Load Capacity: 800 lbs.
Tumbler Basket Load Capacity: 6 cubic ft.

Operating Temperature: 180 degrees F
Initial Heat-Up Time: 90 minutes
Element Size Standard: 30 kW

Motor Rating: Continuous Duty
Motor Starters: Across the Line
Enclosures: TEFC
Short Circuit Protection: Standard
Enclosures: NEMA 12
Overall Protection: Standard
Wiring Conduit: Flex Non-Metallic
Motor Type: Industrial
Type of Conduit: Liquidtight NEMA 12

• Additional tumbler basket
• Pump Sound Insulation
• Pump Amp Meter
• Cabinet Thermal Insulation
• Auto Rinse Cycle (includes ASE)
• Auto Steam Exhaust (ASE)
• Rust Inhibitor Injector Pump
• Steam Exhaust PVC Kit
• High Output Electric Heat + 15 kW
• Internal Reservoir Cover
• Remote Grease Fittings
• Auto Oil Skimmer
• Heated Oil Skimmer
• Sludge Drag Out Conveyor + 10" to ht
• 5,000 lb Ratchet Strap to secure parts
• Turntable Fixture Kit
• Hour Meter
• Turntable Jog
• Gas Heat Source
• EQ-1 Wastewater Treatment System
• Industrial Control Package
• Stainless Steel pump
• Stainless Steel Cabinet
• Stainless Steel Heat Exchanger

* NOTE: All Models available in Load Capacities Two to Three Times Greater
