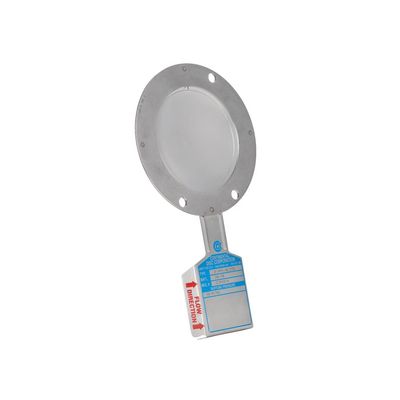

Continental Disc HPX - Reverse-Acting Rupture Disc for Overpressure Protection
The HPX Rupture Disc is designed for exceptional overpressure protection with a versatile reverse-acting mechanism, suitable for numerous applications across various industries. With proven performance exceeding 5 million cycles, it operates at up to 95% of burst pressure, making it a reliable choice for enhancing safety and efficiency. The HPX disc can be customized to meet specific overpressure requirements and is constructed with optimal material thickness to provide accurate burst ratings and extended service life under demanding operating conditions. Available in nominal sizes from 1 to 12 inches and burst pressure ratings ranging between 10 psig and 2,000 psig, it comes with flat seating configuration and is compatible with liquid and gas services. It supports high-performance processing environments, aligns with ASME code standards, and integrates seamlessly without piping modifications. Industries such as chemical, food and beverage, oil and gas, and pharmaceuticals benefit from its durability, leak tightness, and corrosion resistance.Push back against overpressure with the reverse-acting HPX rupture disc – your most versatile, cost-effective weapon in the battle against overpressure.
Engineered to fit nearly any overpressure protection application, the HPX Rupture Disc has proven performance in excess of 5 million cycles, operating up to 95% of burst pressure, proving it the best in the industry – and the best choice for your operation. It’s also part of a larger product line of rupture discs that have proven themselves time and time again.
Custom quality.
We customize every lot of rupture discs we manufacture to meet our clients’ exact overpressure specifications. Each lot is performance and proof-pressure tested before shipment to ensure impeccable performance.
Optimum material thickness and manufacturing tooling design provide the full opening and accurate burst ratings you expect and longer service life at higher operating-to-burst pressure ratios – even against the heightened demands of modern process industries.
A highly cost-effective, versatile design.
Due to its high-performance operating capabilities, range of burst ratings and materials of construction, the HPX is ideal for facilities where production includes batch processing runs with frequently changing operating conditions and media.
The versatility offered by the HPX makes future modifications to specifications easier to incorporate in change-control procedures with no piping modifications necessary.
Nominal Size Range: 1″ – 12″ (25mm – 300mm)
Burst Pressure Range: 10 psig – 2,000 psig (0,689 barg – 138 barg)
Maximum Recommended Operating Ratio: 90 or 95% of the rupture disc’s rated (stamped) burst pressure
Seating Configuration: Flat seat
Service: Liquid or gas
BDI Alarm System Compatible?: Yes
ASME Code Symbol Stamp Available?: Yes
