EM-Pure E4H Series 60 Hz - Reverse Osmosis Machine

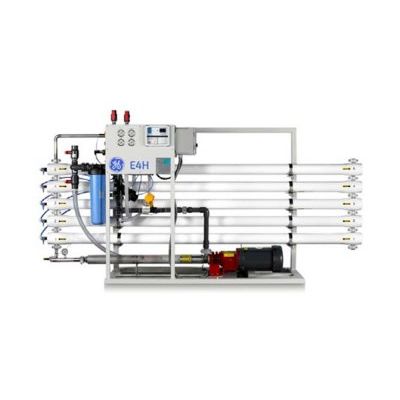

Reverse Osmosis Machine 15,200 to 43,200 gallons per day. When you mention reverse osmosis (RO), Filtronics is the first name to come to mind. Our E-series RO machines (Figure 1) are designed for durable operation, high quality product water production, easy installation and straightforward control.
Most popular related searches
reverse osmosis system
reverse osmosis
cleaning in-place (CIP)
drinking water safety
water ion exchange
paddlewheel flow sensor
boiler feed water
tank level monitoring
chemical dosing pump
feed water
- Process ingredient water
- Safe drinking water
- Boiler feed water
- Ion exchange pre-treatment
- 5-micron pre-filter and housing, 20” (50.80 cm)
- Automatic inlet shutoff valve
- Motor thermal protection
- Pre/Post-filter and primary/final pressure gauges
- Permeate and concentrate flow rotameters
- Permeate conductivity meter
- ALARMS: Low inlet pressure, high amp draw
- Feed water flush on shut down
- Accutrak RO microprocessor controller
- SD card for collection of operating data
- Permeate and concentrate paddlewheel flow sensors
- Inlet pH sensor
- Permeate tank level monitoring
- Chemical dosing pump for antiscalant dosing or pH adjustment
- Clean in Place (CIP) system, 5 HP (3.7 KW)
- ALARMS: Low inlet pressure, high concentrate and permeate pressure, high temperature, high permeate conductivity, high/low pH, motor fault, and fill-time exceeded
