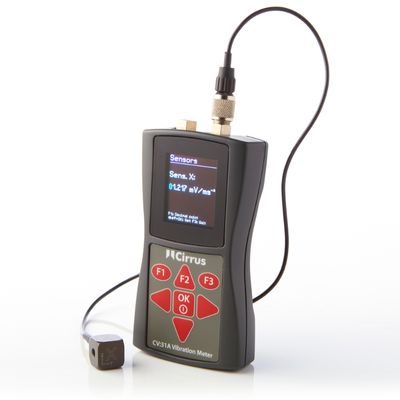

Cirrus Research plc - Revo Hand-Arm Vibration Meter

The Revo Hand-Arm Vibration Meter is a powerful human vibration meter that gives you all of the data you need to complete your vibration assessments while complying with the Control of Vibration at Work Regulations 2005 and ISO 2631.

• Handheld meter for hand-arm vibration measurements in accordance with the Control of Vibration at Work Regulations 2005
• Four independent measuring channels with IEPE inputs and TEDS support
• Gives Vector Sum, A(8), Interval RMS, Running RMS (MTVV), Maximum RMS, Vibration Dose, peak value and maximum peak value
• 3-channel integrated frequency analysis (FFT) for the detection of main frequencies
• Stores up to 10,000 measurements and up to 1,000 FFT Measurements
• No complicated set up needed
• Colour screen display of running and interval measurement values
• USB interface for quick download of your data
• Includes a free reporting package to analyse your data

The Revo Hand-Arm Vibration Meter provides a simple and convenient way to measure, analyse and assess hand-arm vibration data in accordance with standards such as ISO 5349 and European Directive 2002/44/EC.

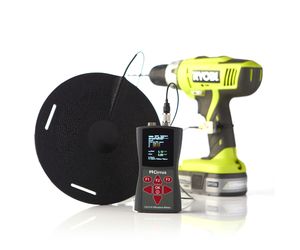

Capable of measuring four channels simultaneously, the Revo Hand-Arm Vibration Meter meets the requirements of ISO 8041:2005 and is ideal for assessing hand-arm vibration to help reduce the incidence of permanent and painful conditions such as Hand-Arm Vibration Syndrome (HAVS) and Vibration White Finger associated with over-exposure of vibration from power tools and other vibrating machinery.

The Revo vibration meter gives you the Vector Sum m/s2 (of the triaxial vibration measurement consisting of X, Y and Z) of individual tools, and also m/s2 A(8) vibration exposure over your average over a working day.

The exposure action value (EAV) is the daily amount of vibration exposure above which you should take action to reduce exposure; the greater the exposure level, the greater the risk and the more action you need to take to reduce the risk. For hand-arm vibration the exposure action value (EAV) is a daily exposure of 2.5 m/s2 A(8).

The exposure limit value (ELV) is the maximum amount of vibration an employee may be exposed to on any single day under the Regulations. For hand-arm vibration the ELV is a daily exposure of 5 m/s2 A(8). It represents a high risk above which no employee not be exposed.
