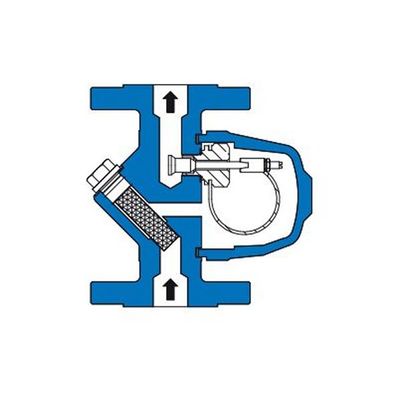

RIFOair - Thermo-Controlled Bi-metallic Vent Valve

Application: For venting ot steam chambers. Function: Automatic venting during start-up. A temperature drop opens while an Increase of temperature closes the passage. As steam temperature the valve closes. Special characteristics: The 34-corroslon resistant bl-metal control element forms a single Item. Due to the large tolerance between valve stem and valve housing, the unit Is Insensitive to contamination. Valve travel can be asjusted to suit special system requirements, such as supersaturatlon and backpressure. Installation: Horizontal or vertical.
