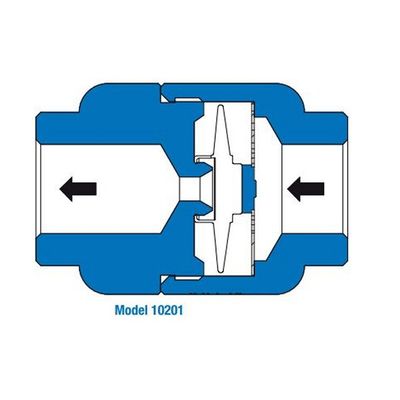

RIFOka - Model 10201-N-10201R-N -Thermo Controlled Capsule Trap

SHARE

Housing Material: 1.4104. Nominal diameter: DN15, DN20, DN25. Connections: • Female thread G W-1" (BSP) ace. DIN ISO 228-1 • BSPT, NPT thread or other connections on request. Nominal pressure stage: PN 40. Working media: Steam and condensate. Not applicable for media of fluid group 1..

Most popular related searches
check valve
evaporative condenser
ball check valve

Function: A special liquid contained within the capsule evaporates or condenses due to changes in temperature. The operating temperature is only appr. 10 °C below the boiling point of water. When the temperature rises, the liquid evaporates and closes the valve. When the temperature drops, the liquid condenses and opens the valve.

Special characteristics:

Due to the very slight temperature drop, accumulation of the condensate is reduced. The capsule reacts to temperature changes immediately. Thissystem ensures prevention of losses inlive and control steam and is insensitive to waterhammer.

For model 10201R: The extra ball is used as check valve. Installation: Horizontal or vertical
