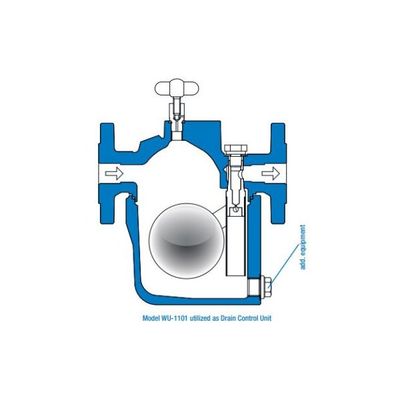

RIFOlevel - Model 1101-AR -Drain Control Unit

SHARE

Housing material: EN-GJS-400-18-LT (5.3103). Connections: DN 15,20,25,40,50 flanges, connecting dimensions. according to DIN EN 1092-2. Flange connecting dimensions for1/2n-2" Class 150 and Wl, 3/4". Class 300 ace. to ANSI. Nominal pressure stage: PN 25.

Most popular related searches
sliding valve
rotary valve

Function: Increasing levels open and decreasing levels close the outlet without delay, independent of pressure and temperature fluctuations.

Special characteristics: Only one movable point since the rotary-slide-valve is both swivel joint and shut-off-device.

Installation: horizontal

Additional equipment against extra price:

  • Control with special cross-section VIII a, VIII b and V
  • Screw plug
  • Connection for gas pressure compensating line instead of control screw
