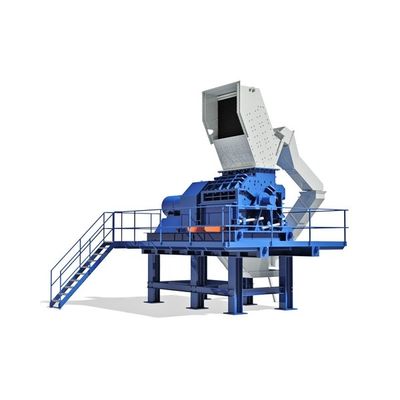

ELDAN - Model S1000 / S1500 -Ring Shredder

The Eldan Ring Shredder is the optimum solution for size reduction of light scrap such as:

• Electronic waste (WEEE directive)
• Non-ferrous fractions from Car Shredders
• Aluminium
• Small electric motors, starters

The ELDAN Ring Shredders are the optimum solution for size reduction of light scrap such as: electronic and electrical waste (i.e. WEEE), non-ferrous fractions from car shredders, aluminium, small electric motors, starters, etc.

• Impact rings ensure opening of material and liberation of metals
• Hydraulically opening of the upper part provides access to the rotor for inspection and service
• Grates available with different hole sizes
• Hydraulically opening of grate retainers, enabling easy exchange of grates
• On the rotor the impact rings are mounted on 4 secondary shafts
• Exchangeable wear parts give you a virtually indestructible machine
• The hydraulic clutch enables the torque to be transmitted smoothly from the rotor, also absorbing the shocks if any

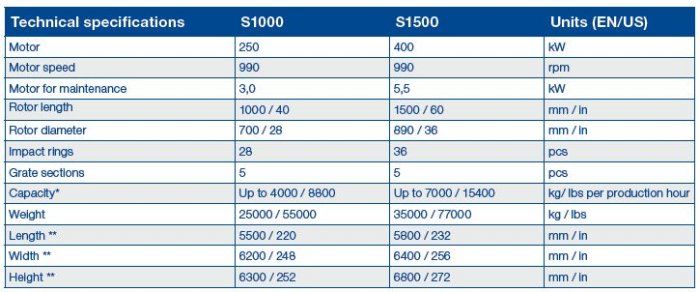

Standard voltage: 3 ph, 400 V, 50 Hz - for other voltages please contact our sales department
* Depending on type of input material, method of feeding and screen size
** Excl. stairs
