Penn-Troy Manufacturing, Inc.

- Rising Telescoping Valves

From

0

Rising telescoping valves are used when gross indication of the valve’s position is desired during siphoning or regulating fluid levels. There are two models of rising telescoping valves to choose from depending on the needs of your application.

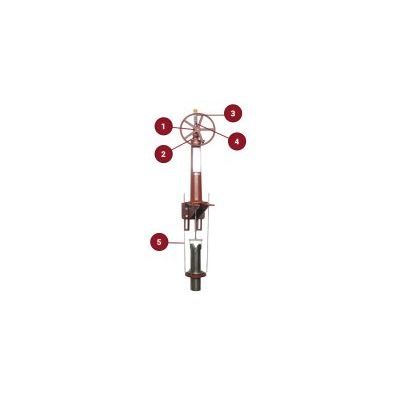

1. Rack and Pinion Design
Longer travel can be achieved with an easier installation process than traditional screw types. By design, this model doesn’t need anti-rotation.

2. Safety-Lock Gearbox
A worm gear (self-locking mechanism) allows for safer, easier operation and infinite adjustment of the valve. The gear box helps the valve hold its position and not settle over time. Components are easy to replace for quick, economical maintenance. The gearbox forms a right angle from the stem, enabling the handwheel to extend closer to the operator.

3. Clear Rack Cover Tube
The cover tube protects the rack while still enabling it to be marked at key positions for reference by operators. Weep holes minimize condensation inside the tube.

4. Mylar Indication Strip
Get a highly visible, precise ¼” indication of the valve’s position with the Mylar strip.

5. Optional Lubrication System at Flange Level (Exclusive to Penn-Troy)
A slip tube lubrication system pumps grease to the slip tube to help keep the companion flange working when routinely exposed to atmosphere. It is also ideal for use in a dry application.
