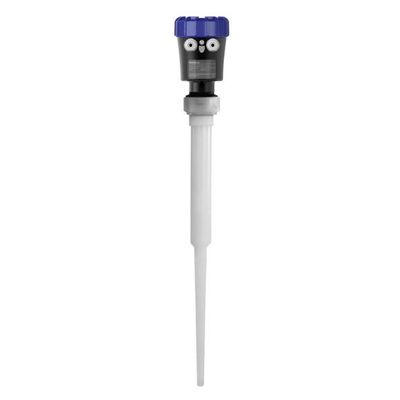

SOLIDAT SoltaScan&C - Model SLDL5215 -Rod-type Radar Level Meter
SoltaScan&C band Rod-type radar level meter can penetrate foam and deposited condensate for measurement, so it is suitable for harsh process conditions. No matter how steam, mixed gas, pressure and temperature change, it can reliably measure the level of different media. Pulse radar working principle: It adopts the microwave pulse measurement method and can work normally within the industrial frequency band. The 6.3GHz low-frequency radar level meter has low beam energy and can be installed in various metal and non-metal containers or pipes to perform non-contact continuous measurement of the level of liquids, slurries and granular materials. It is suitable for places with large changes in dust, humidity and pressure, and the presence of inert gas and steam.
The 6.3GHz low-frequency radar level meter has strong beam penetration and can be used in highly corrosive environments and sanitary environments
The antenna size is large and is not easily affected by condensation and hanging materials
The rod-type radar level meter is better than high-frequency for corrosive liquids, bubble or foam liquid levels, and surface wave motion liquid levels
- Application: Suitable for simple process liquid measurement, process liquid level measurement in highly corrosive environments and sanitary environments, and narrow short pipe installation applications
- Measuring range: 35 meters
- Accuracy: ±5mm
- Antenna material: rod antenna, PVDF, PTFE, PP and PFA
- Emission angle: 30°
- Process connection: thread G1 1/2 or flange, PTFE flange
- Medium temperature: -40~150℃
- Process pressure: -1-16bar
- Protection level IP68
- Frequency range: 6.3GHz
- Signal output: 4-20mA/HART (two-wire/four-wire), etc.
When installing, pay attention to the distance between the instrument and the container wall.
If you cannot comply with this distance, you should suppress the fault signal once during commissioning. This is especially suitable when there are deposits on the container wall. In this case, it is recommended to repeat the fault signal suppression with the existing deposits at a later time.
The low-frequency Rod-type radar level meter is at least 500mm away from the container wall
