Rotary Concentrator Systems
Lowest Cost Technology for controlling VOC emissions from low concentration exhaust streams. Concentrator technology combined with an RTO system is the most cost effective solution for high volume and low VOC concentration process streams.
Catalytic Combustion’s rotary concentrator systems have been successfully applied in numerous industrial applications.
A continuously slow rotating rotor made of corrugated mineral fiber material coated with synthetic zeolite adsorbs the organic pollutants. The adsorbed pollutants are then desorbed with a small hot air stream and directed to an oxidizer.
The zeolite rotary concentrator reduces the solvent laden process stream by a factor of 5:1 to 20:1, depending on solvent type and concentration. The smaller air stream with higher solvent concentration is treated by the oxidizer which means significantly less energy operating cost compared to any thermal oxidation technology including RTO.
Synthetic zeolite media properties:
- Hydrophobic (water resistant)
- Effective in high relative humidity
- Non-flammable
- Inorganic-inert substance
- VOC destruction efficiency
up to 96% - Concentration ratio up to 20:1
- Process stream inlet temperature up to 120 degree F
- Process stream inlet relative humidity up to 80%
- Acid corrosion resistant
- Standardized proven design

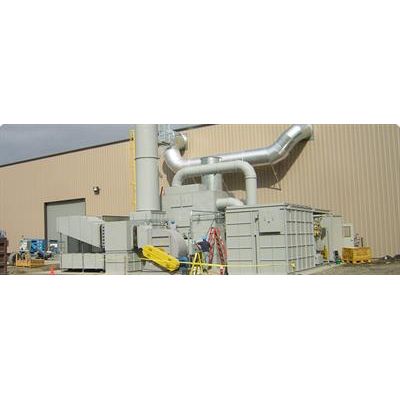

The system consists of a process fan, concentrator with 2 or 3 stage filter, oxidizer (typically RTO or catalytic oxidizer), interconnecting ductwork, exhaust stack, and PLC controls.
Each system is designed for a condition of a specific application. Sizes range from 12,000 SCFM to 400,000 SCFM.
Zeolite MediaSynthetic zeolite media properties:
- Hydrophobic (water resistant)
- Effective in high relative humidity
- Non-flammable
- Inorganic-inert substance
- VOC destruction efficiency
up to 96% - Concentration ratio up to 20:1
- Process stream inlet temperature up to 120 degree F
- Process stream inlet relative humidity up to 80%
- Acid corrosion resistant
- Standardized proven design
