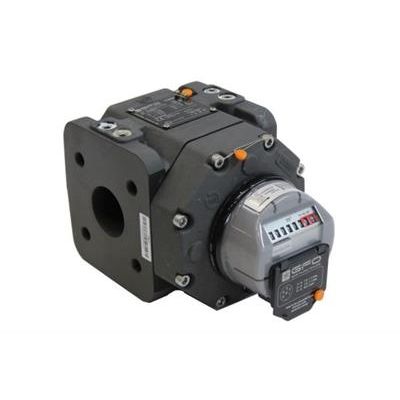

iCenta - Model GFO -Rotary Gas Meter

Features of the small rotary meter include:

• Square shaped impellers and rigid supporting front plate, this makes this meter fully insensitive to pipe-line stresses caused by misalignment.
• The unique symmetrical shape of the impeller allows the maximum amount of gas to be passed with the minimum leakage and since the width of the impeller tip is at least two times greater than conventional impeller tips, the unregistered leakage through the meter is significantly reduced, resulting in an enlarged turn down ratio.
• Robust design –  no bending, twisting or torque affects, resulting in a stronger connection between the impellers and far less venerable to improper operation.
• Multifunctional coupling – To eliminate limitations to future upgrades both the GFO-RM series and the GFO-TM series are equipped with a hybrid magnetic coupling.
• Multifunctional Index – the ability to change sensors quickly and easily, gives the meter maximum flexibility
• Sync impeller principle – eliminates nearly 100% of pulsation increasing lifetime of the meter, reduces noise and improves accuracy.

• High level of accuracy
• Micro flow sensors
• Suitable for a range of gases

• Media: Natural gas, town gas, propane, inert gases.
• Industry: Gas supply, heating manufacturers, chemical industry

The meter belongs to the group of positive displacement meters.

Specification Detail of the Rotary Gas Meter:

• Pipe Size : DN40
• Material Body : Aluminium
• Flow Range : G10, G16, G25
• Accuracy : 0.2 Q max to Qmax ±1% or better, Qmin to 0.2 Qmax: ±2% or better
• Operating Temp Range : -25ᵒ to 60ᵒC
• Pressure Range : PN10/16, ANSI 150
• Outputs & Comms : LF
• Insertion / Inline : Inline
• Gas Type : Natural, Town, Propane and Inert gases
• Applicable Liquids : N/a
• Power : Battery
• Approvals : N/a
• Connection Type : DIN, ANSI
