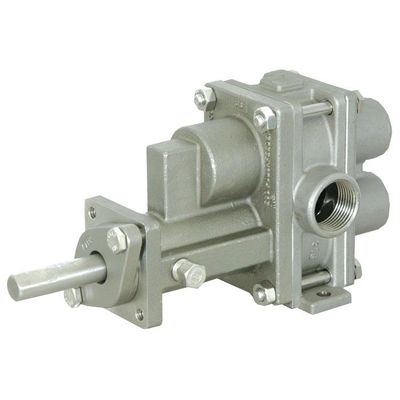

Pulsafeeder - Model ECO Gearchem -Rotary Gear Pump
The ECO Gearchem rotary gear pump is an economical alternative for chemical transfer, cyclic operation and continuous production systems, both open ended and closed-loop. ECO gear pumps are well suited for pilot plants, vacuum systems, and metering applications.
Most popular related searches
rotary gear pump
gear pump
rotary pump
diaphragm metering pump
chemical transfer
metering pump
chemical meter
wear plate
solvent recycling
diaphragm pump
Our rotary gear pumps are routinely used for:
- Chemical Metering and Transfer
- Batch or Continuous Production Systems
- Open Ended and Closed Loop Processes
- UL 1389 Certified Models for plant oil extraction
Pulseless flows up to 55 gpm
- 0-100% flow capability
- Temperatures up to 400F (204C)
- Maximum allowable working pressures up to 200 psi
- Viscosity range from 0.8 cPs to 100,000 cPs
- ECO pumps can safely handle clear lubricating and non-lubricating liquids.
Versatility
Used in applications such as solvent recovery, adhesives, molten sulfur, acids and caustics, these pumps can handle liquids with a wide range of flows, temperatures, pressures and viscosities:
To meet the demands of these applications, the ECO pump is available in a variety of materials of construction:
- Housings: 316 Stainless Steel, Alloy 20 or Hastelloy C
- Gears: 316 Stainless Steel, Alloy 20, Hastelloy C, PEEK, Glass Filled PTFE
- Wear Plates: Carbon, Glass Filled PTFE, PEEK, Ceramic
- Bearings: Carbon P72 and P90, Glass Filled PTFE
- Sealing Options: Single and Double Mechanical Seals or Grafoil® Packing
- NPT, BSPT, ANSI Flanged or Sanitary Tri-Clamp connections option
- Close coupled or long coupled motor adapters
Metering or Transfer Applications:
- The ECO rotary gear pump is an economical alternative over conventional metering or transfer pumps, offering low initial cost, simplicity and minimum maintenance – particularly for applications less than 100 psig.
- A properly installed gear pump, with an application specific characteristic curve based on speed and pressure versus flow can offer a level of predictive maintenance not available with conventional diaphragm metering pumps.
Experience:
- Known for its rugged construction and dependable performance, ECO pumps represent the highest level of manufacturing excellence and quality control.
