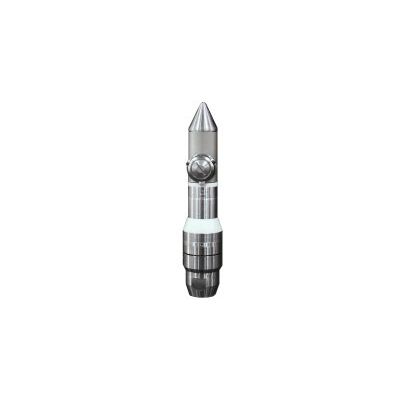

Gamajet - Model 7 -Rotary Impingement Tank Cleaner
The Smallest Rotary Impingement Tank Cleaner. The Gamajet 7 Tank Cleaning Machine is a small, powerful unit ideal for cleaning all types of barrels, drums and small vessels. It eliminates extensive handling by offeringone-step, one-insertion cleaning. The Gamajet 7 Tank Cleaning Machine can deliver fast “as new” cleaning in less than two minutes, and works especially well in tough cleaning situations involving wine, paint, and other difficult to clean materials. The combination of rugged, long-lasting design, powerful jet spray cleaning; and field serviceability have long made Gamajet the first choice for cleaning among the world’s best known companies. The Gamajet 7 Tank Cleaning Machine represents a major technological break-through, offering the most powerful cleaning in a compact, easy to handle size. Capable of running with the pressure and flow of your standard pressure washer.
GAMAJET E-Z7 Technical Specs
Operating Range:
Pressure: 50 to 1000 psi (3 to 69 bar)
Temperature: 32° to 180°F (0° to 87.77°C)
Flow Rate: 2 to 8 GPM (7.6 to 30.3 l/min)
Cleaning Radius: 2.5` (.75 Meters)
Wash Cycle Time: 2 to 5 Minutes
Impact: 5 lbs (2.5 kg) at 2.5` (.75 m)
Overall Dimensions:
Height: 7" (177.8 mm)
Body Diameter: 1.5" (38.1 mm)
Clearance: 1.5" (38.1 mm)
Weight: 1.5 lb (0.68 kg)
Other Specifications:
Inlet Connection: 1/2" NPT-Female
Construction/Design: Parts are machined from 316-L Stainless Steel investment castings or bar stock.
Impeller & Final Shaft: For increased wear resistance, the input shaft is plasma-sprayed with a Chromium Oxide coating on Stainless Steel.
Shaft & Gearbox Bushings: Turbine shaft thrust is absorbed by a Tungsten carbide bushing. Gear bushings are polyphenylene sulfide.
Bearing Cups: Main body castings are protected by replaceable 316-L Stainless Steel cups for extended frictional wear life.
Static Seals: O-Ring materials are selected for each application. EPDM is standard with Kalrez®, Zalak® and Viton® available. Other materials can be supplied on special order.
Dynamic Seals: Rotary shaft and housing seals/bearings are spring-loaded, double-lipped and made of PTFE. They are reinforced for extra long wear and protection against leakage, abrasion and deposit build-up.
Nozzles: Standard nozzle sizes 0.050 (1.3 mm), 0.060 (1.5 mm), 0.070 (1.8 mm), 0.100 (2.5 mm). Other nozzle sizes are available upon request.
Drive Mechanism: The wash fluid enters the Gamajet at the inlet collar where it encounters and spins turbine blades. The turbine blades are attached to the top of the drive or rotor shaft. The bottom of this shaft is connected to the inside of a sealed, planetary gearhead which then turns the body in the horizontal plane and the nozzles in the vertical plane.
Planetary Gearhead: The sealed planetary gearhead has an external casing made of steel, surface-anodized to become stainless. This sealed gearhead is located inside the gearbox, which itself is sealed, and thus does not require any lubricant. All internal gearhead parts are hardened sintered steel.
Lubricant: A Food grade lubricant is inside the sealed gearhead casing. No customer-supplied or user-maintained lubricant is needed.
Benefits:
Smallest rotary impingement tank cleaner: 1.5” (38 mm) clearance
Operates at both high and low pressures
Powerful: 5 lbs (2.5 kg) of cleaning force at 2.5’ (0.75 m)
