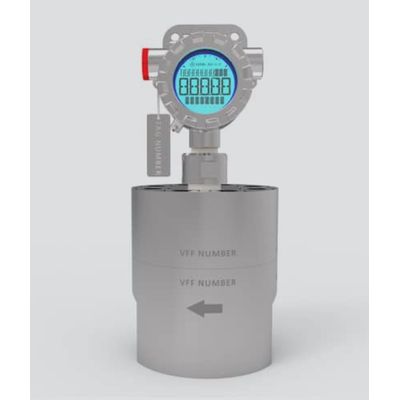

Litre Meter - Model VFF -Rotary Piston Flow Meter

In the VFF the rotor is basically a disc shape with an annular groove on its underside capable of holding and transporting flow from the chamber inlet to the outlet. Some fluid is also transported in a cavity formed between the rotor outside wall and the chamber wall. A centre ‘peg’ under the rotor is constrained to run in a circular groove in the body. A web (or plate) in the body is engaged with a slot in the rotor and this modifies the rotation to that of an oscillation as flow passes. It is this oscillation that produces the compartmentation of the fluid into ‘positively displaced pockets’. The top of the rotor is equipped with a powerful magnet directly above the ‘peg’ that is on the underside and so this also has a circular path which allows it to engage and disengage a reed switch sensor located in the top cap above.
