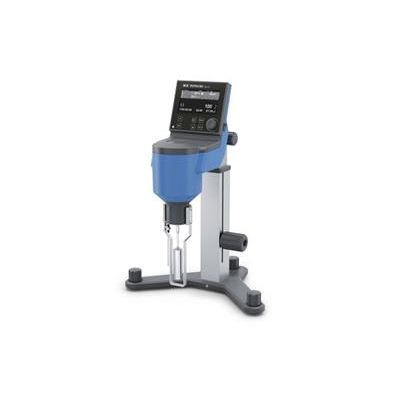

ROTAVISC - Model lo-vi -Viscometers
The new ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand.
Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.
Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment.
IKA Rotavisc lo-vi Complete
Viscosity measuring range: 1 - 6,000,000 mPas
- Viscosity Measuring Range 6000000 mPas
- Viscosity Accuracy (FSR) 1 %
- Viscosity Repeatibility (FSR) 0.2 %
- Spring torque 0.0673 mNm
- Guard rail lo-vi
- Measuring spindle series SP set-1
- Motor rating output 4.8 W
- Overload protection yes
- Direction of rotation right
- Display TFT
- Speed display TFT
- Speed range 0.01 - 200 rpm
- Setting accuracy speed 0.01 ±rpm
- Speed control TFT
- Torque display yes
- Torque measurement trend
- Timer yes
- Timer display TFT
- Time setting range 0.017 - 6000 min
- Temperature measurement resolution 0.1 K
- Working temperature display TFT
- Connection for ext. temperature sensor PT 100
- Graph function yes
- Operating mode timer and continuous operation
- Calibration option yes
- Touch function yes
- Pemitted density 9999 kg/dm3
- Working temperature -100 - 300 °C
- Fastening on stand extension arm
- Support rod diameter (with integrated fastening on stand) 16 mm
- Telescope stand stroke 200 mm
- Plug-in coupling (Ø) 12 mm
- Basic container volume 600 ml
- Stand Rotastand
- Stroke max. 200 mm
- Diameter 16 mm
- Dynamic load 5 kg
- Dimensions (W x H x D) 351 x 629 x 372 mm
- Weight 7.1 kg
- Permissible ambient temperature 0 - 40 °C
- Permissible relative humidity 80 %
- Protection class according to DIN EN 60529 IP 40
- RS 232 interface yes
- USB interface yes
- Voltage 100 - 240 V
- Frequency 50/60 Hz
- Power input 24 W
- Power input standby 0.06 W
- DC Voltage 24 V=
- Current consumption 1000 mA
