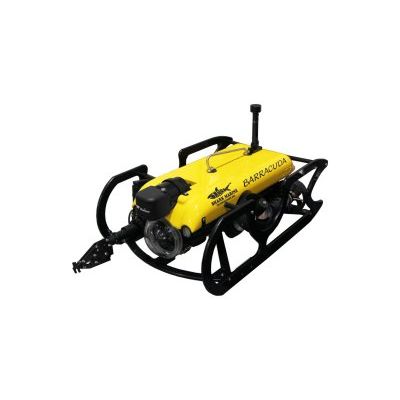

Barracuda - ROV System
Designed for speed and power, the Barracuda is very capable in high current applications. Constructed using high-tech plastics, anodized aluminum and syntactic foam, it is small and maneuverable. It is also large enough to support the easy addition of mission specific accessories (e.g. sonar and video systems). All accessories fit inside the frame to avoid entanglement issues. The built in Total Navigation System, and DiveLog software, give the it full geodetic positioning and autonomous capabilities.
Most popular related searches
multibeam imaging sonar
forward looking sonar
metal thickness monitoring
scanning sonar
imaging sonar
infrastructure inspection
radiation detection system
thickness monitoring
multibeam sonar
ROV system
- Search and Recovery
- EOD
- Ship Hull Inspection
- Infrastructure Inspection
- Light-Duty Intervention, Excels in the above applications in strong current environments
- Dimension 87.7 cm x 53 cm x 31 cm (34.5” x 20.875” x 12.21”)
- Weight 39 kg (86 lbs)
- Power In 220-240 VAC @ 50-60 Hz, Draw scalable in software 2000-7200 Watts
- Thrust 2x Horizontal, 2x Transversal, Forward Thrust: 36.3 kg (80 lb)
- Depth Rating 300 m (1000 ft) (deeper options available)
- Illumination 2x Shark Marine Aurora LED lights: 3700 lumens (additional lighting optional)
- Options SD/HD Cameras, Digital Still Cameras, Laser Scaling System, Recovery Reels, Electric Manipulators, Launch and Recover Systems, USBL Positioning, Multi-Beam Imaging Sonar, Scanning Sonar, Radiation Detectors
- Forward Looking Sonar
- Scanning Sonar
- Tether Management / LARS
- Manipulator Arms
- Recovery Hook
- Scaling Lasers
- Total Navigation System
- Pro-Stick Controller
- Transformer
- Metal Thickness Gauge
- NAV-RAD
