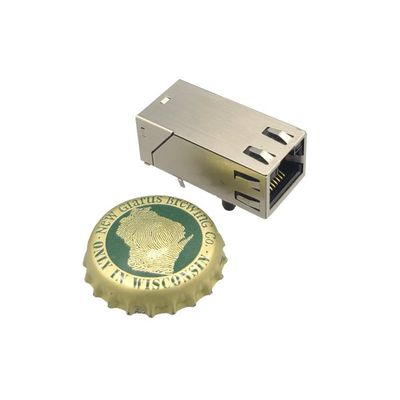

RTA - Model RTConnect -Protocol Module
The RTConnect Protocol Module gives you a suite of protocols to help you access the leading automation market segments. Here’s what else the Module delivers.
Most popular related searches
- Add Ethernet-based communications protocols with a single unit
- Extremely sma II foot print
- Includes Ethernet/IP. Modbus TCP and BACnet
- Easily interface with existing Modbus RTU and serial-based ASCII devices
- Protocol certification support and assistance is available"
- Web browser based network setting and diagnostics
- Proven PHY reduces the complexity of adding Ethernet to your device
- Makes incorporation easy, even in the tightest spots
- Support multiple ethernet communication protocols in a single form factor
- Leverages common industry protocols as base form
- RTA expertise minimizes testing parameters and reduces time to market
- Allows access from almost any device so you can focus on your core IP
- Presentation Protocols: Modbus TCP, EtherNet/IP, BACnet/IP, Profinet (Profinet released Q1 2023)
- Board Interface Protocols: Modbus RTU, ASCII serial Client
- Board interface Options: RS232, TTL—Serial data rate up to 921,600
- Power: +3.3 volts DC
- Temp Range: -40ºC to +85ºC (-40ºF to +185ºF)
- Certifications: RoHS Compliant, REACH
- Indicators (LED): 10 Base-T Connection, 100 Base-T Connection, Link and Activity Indicator (Full/Half Duplex)
