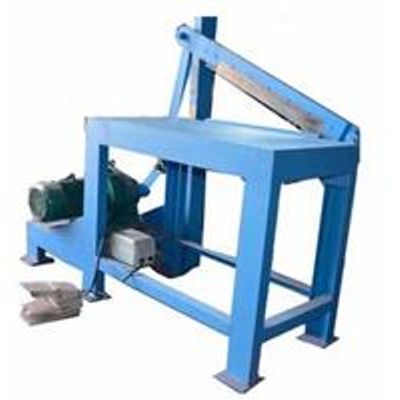

Xinda - Model QGJ-1 -Rubber Cutting Machine

Structure and principle

This machine consists of frame, reducer, turn setting and a pair of blades. The connecting rod is driven by the operation of reducer, make the moving blade run bakc and forth, and the static blade which is fixed in relevant position on the frame, they can form the reasonable cutting angle, thus achieves the smooth cutting effect.

Characteristic
This machine has simple structure, small size, easy operation, low energy consumption, durable, wide use.

• Cutting speed(time/min) 43
• Effective sheared lengh(m) 0.58
• Power(Kw) 3
• Weight(Kg) 300
• Overall size(M) 1.4*0.7*1.3
