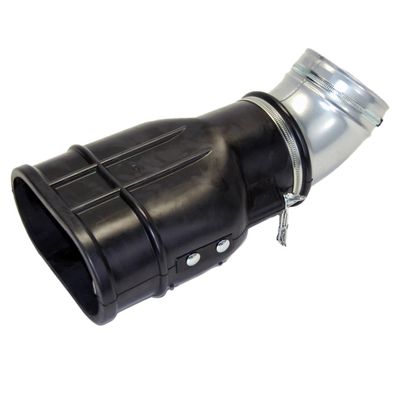

Plymovent - Rubber Nozzle With Spring Clip (REC) Nozzle

• All nozzles are easy and quick to connect and disconnect
• The oval adapter can work on dual exhaust pipes

The REC is designed to take in ambient cooling air thereby reducing the exhaust emission temperature. Recommended for today’s trucks, private cars and especially vehicles with twin exhaust pipes. The nozzle is composed of moulded, high temperature resistant rubber. The REC is also equipped with an inner spring clip in order to strengthen the connection with the exhaust pipe. The nozzle also includes a CO-outlet for measuring emission values. The REC is also available with a manual on/off damper for flow control (REC-D versions).

The REC is intended to be used for the following applications:

• To eliminate hazardous vehicle exhaust emissions with our vehicle exhaust capture and removal systems for the following segments: fire and emergency service stations as well as military facilities.

Physical dimensions and properties

• Material
• elbow
• grabber
• steel
• EPDM rubber
• Color: black/aluminum

?Ambient conditions

• Temperature resistance:
• 350°F continuously
• 400°F spike
• Max. relative humidity: 80%
• Outdoor use allowed: no

Where used

• Suitable for all Plymovent fixed extractors and exhaust hose reels

Scope of supply

• Rubber nozzle with spring clip (optional: damper) | Elbow

?Order information

• Article no. see remaining specifications
• Number/package: 1

?Shipping data

• Harmonized Tariff Code: 84219990

Keywords: exhaust removal, exhaust emissions, exhaust extraction
