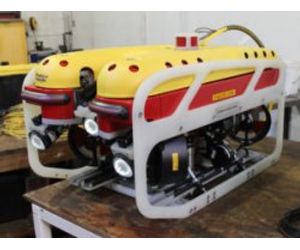

The SAAB Seaeye Falcon DR is an inspection-class vehicle capable of working in up to 1,000 meters of water. The combination of size, power and ability make it an exceptionally efficient, versatile machine. Similarly to the Falcon, the Falcon DR is small enough to deployed and retrieved by hand as well as be transported in a pick up, with the power to perform in up to moderate current. It posses the ability to support a variety of add on instruments including a wide range of sonar options; side scan, multi beam, and 3D; as well as tooling options that include a five-function manipulator and precision navigation to greatly enhance the capabilities of this system. The Falcon DR has a fiber optic addition that provides three simultaneous video channels.
-
Most popular related searches
Seaeye Falcon DR Overview
The Seaeye Falcon DR is the choice of many leading operators for capability, versalitility, and the ability to get the job done. Lightweight and portable - it goes where it’s needed; inshore, offshore, down tunnels, or for flyaway operations. The Falcon DR is made of robust, buoyant material that is easily drilled and machined to be corrosion free. The open frame design allows easy access for service and maintenance.
Brushless DC thrusters have drive electronics with velocity feedback for precise and rapid thrust control. A distributed intelligence control system eliminates the need for the traditional ROV electronics pod packed with interface circuit boards - freeing up space and significantly reducing the weight of the vehicle. Three forwardfacing, variable-intensity 3200 Lumen LED flood lights are fitted and powered at low voltage to improve reliability and longevity. The forward-facing lights tilt with the camera for improved scene illumination. A high-resolution, fixed-focus camera is fit to a platform that can be tilted ± 90 degrees. The fiber optic addition provides three simultaneous video channels
The Falcon DR has a 19-inch transportable rack case that houses its switch mode power supplies, control system, keyboard, and fold-out 15-inch LCD monitor. All connections to the surface unit are on the front panel for easy access; including the hand controller. The power output from the surface unit to the umbilical is a galvanically isolated 500 VDC protected by a line insulation monitor (LIM). A single-phase universal auto sensing input, 100-270 VAC at 2.8kW, is required for the input power.
