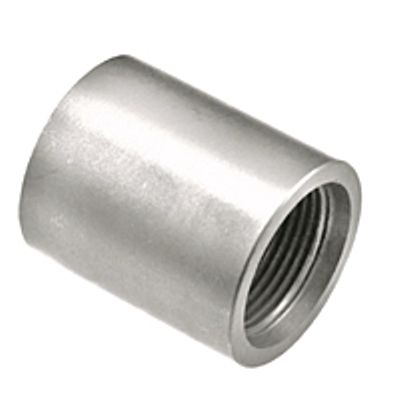

Anchor Fluid Power - Model 830-4 -SAE to SAE Full Couplings

The SAE to SAE full coupling by Anchor Fluid Power is crafted from AISI 1020 carbon steel, ensuring durability and reliable performance in fluid power systems. It features a precise 0.880-inch dimension A, making it suitable for applications requiring standard SAE to SAE connectivity. Engineered in compliance with industry-standard SAE straight threads and UNF-2B specifications, it provides a secure and leak-proof connection for hydraulic and pneumatic systems. Dimension B is 0.390 inches and dimension C measures 1.160 inches, with thread dimensions of 7/16-20, ensuring compatibility with a variety of industrial setups. This coupling is designed to meet the rigorous demands of fluid dynamics, providing optimal performance in demanding environments. Its robust construction and compliance with technical specifications make it a reliable choice for engineers and manufacturers in need of high-quality coupling solutions.
