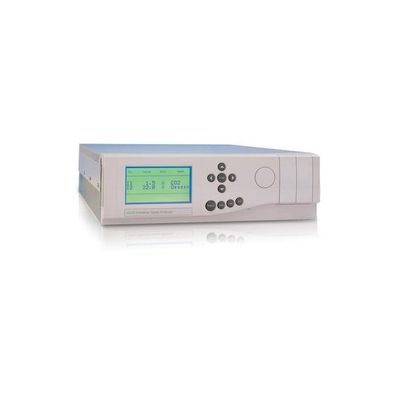

Servopro - Model 4200/4210 -Safe Area Gas Analyzer

SHARE

High specification analysis of flammable gas samples and trace contaminants in industrial gases applications including HyCO and Syngas mixtures. Designed specifically to meet the needs of the industrial gases industry, in particular the monitoring of hydrogen, HyCO and Syngas mixtures, the SERVOPRO 4200 delivers unparalleled sensing capabilities for flexible flammable gas sample contaminate testing.

Most popular related searches
safe area gas analyzer
trace carbon monoxide
gas sampling
flammable sample
contamination testing
contaminant testing
gas analysis
trace contaminant
safety regulations
trace carbon dioxide
Utilizing Servomex patented Paramagnetic and IR (SBSW and Gfx) technologies, the 4200 is able to measure up to four gas streams simultaneously. For higher concentrations of flammable gases, the 4210 model variant offers resilient stainless steel pipework. The 4200/4210 provides excellent affordability over a long product life. Simplified and cost-effective ongoing maintenance is delivered through easy intuitive integrated menu configuration, and extended calibration intervals provided by the integration of non-depleting, ultra-low drift, high stability sensors.


Flexible
  • Measures % O2, CO2, CO and CH4 / trace level CO, CO2, N2O, CH4
  • Measures up to four flammable gas streams simultaneously
  • External analog input facility
  • RS232/RS485 serial data output and Modbus communications
Easy to use
  • Intuitive, engineer-friendly configuration via integrated LCD interface
  • Integrated storage for alarm, fault and calibration history logs
  • Simplified remote calibration
Low cost of ownership
  • Reduced ongoing operational needs via automatic calibration option
  • Easy set-up using integrated LCD and simple device installation
Unrivalled performance
  • Uses industry-leading, patented Paramagnetic and SBSW/Gfx IR technologies for ultra-stable, accurate and selective measurements
  • Manufactured by Servomex - over 60 years’ experience innovating and pioneering gas analysis and thousands of units used in the field every year
Benchmark compliance
  • Meets the requirements of: EN 61010-3:2010 EN 61326-1: 2013
Size
  • 483 mm (19”) Wide x 133 mm (5.2”) High x 478mm (18.8”) or 608 mm (23.9”) Deep max.
Weight
  • <22kg (48.4lbs)
Certifications
  • EN 61010-3: Safety requirements for electrical equipment for measurement, control and laboratory use
  • EN 61326-1: Electrical equipment for measurement, control and laboratory use
  • Installation Category II rated in accordance with IEC664
  • Product quality validation in hydrogen plants
  • HyCO process control
  • Bottling/filling plants producing flammable gas blends

Ensure your SERVOPRO 4200/4210 analyzer delivers optimum performance with Servomex Service Network.

Through our global network of engineers and service centers, we provide complete lifetime support for your analyzer. Our services range from installation and commissioning to supplying high quality spares and arranging scheduled servicing: visit our Service Network pages to find out more.
