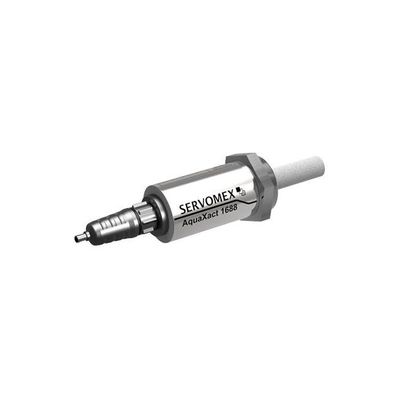

Servopro AquaXact - Model 1688 -Safe Area Gas Analyzers
A fast, accurate and resilient moisture measurement solution for a range of gas phase process applications. The AquaXact 1688 is a rugged, ultra-thin film Aluminum Oxide moisture sensor that enables fast and accurate dew point and ppm H2O measurements of moisture in a wide variety of gas phase process applications. Not only is it a standalone 4-20mA transmitter, but it is also able to be remotely interfaced to the SERVOPRO MonoExact DF310E, SERVOPRO MultiExact 4100 and the AquaXact 1688 digital controller. The controller provides a high-clarity color touchscreen display, alarms, relays and advanced communication protocols including RS485, Modus RDU, Modbus TCP/IP and PROFIBUS. Optional internal oxygen sensors provide ppm to percent level O2 measurement capabilities.
The Al2O3 thin film sensor tip can be replaced by the user and the associated calibration file loaded into the transmitter using the controller, eliminating the need for return-to-factory calibrations. Yearly field calibration adjustments require only a single gas standard.
The sensor element is NIST-traceable and field-replaceable, for hassle-free recalibration.
Stainless steel, weatherproof casing (Class 1 Division 2 in 2019) enables operation in ambient temperatures ranging from -10°C to +70°C.
Flexible
- Dew point range -100°C to +20°C
- Functions as a standalone dew point transmitter – 4-20 mA loop-powered
- Range of engineering units: °C, °F, ppmV
Easy to use
- Interfaces with SERVOPRO MonoExact DF310E gas analyzer system and AquaXact controller via digital interface - maximum cable length 200 meters
- In addition to standard analog outputs, RS485, Modbus RDU, Modus TCP/IP and PROFIBUS communications are available
Low cost of ownership
- High-performance ultra-thin high-capacitance aluminum oxide sensor is easily replaceable in the field
- No more than annual calibration when used with clean, non-corrosive gases
Unrivalled performance
- High accuracy ± 3°C, Repeatability ± 0.5°C
- Accurate dew point measurements over its full range, even under extreme temperature conditions
- Unaffected by condensation and liquid water
Benchmark compliance
- IP65 rated connector
- Hazardous Area versions (Zone 2/Div 2) available soon
Flexible
- Dew point range -100°C to +20°C
- Functions as a standalone dew point transmitter – 4-20 mA loop-powered
- Range of engineering units: °C, °F, ppmV
Size
- Diameter: 44 mm (1.73”)
- Length: 188 mm (7.4”)
Weight
- 227g (0.7lb)
Certifications
- IP65 rated connector
- Hazardous Area versions (Zone 2/Div 2) available soon
- Air Separation Units
- Natural Gas Processing and Transportation
- Glove Boxes
- Instrument Air Units
- Ethylene Production
- Refining Gases
- Medical Gases
- Semiconductors
- Furnace Gas/Heat Treating
- Power Generation
- Air Dryers
- Pharmaceutical
- Aerospace
Ensure your AquaXact 1688 moisture sensor delivers optimum performance with Servomex Service Network.
Through our global network of engineers and service centers, we provide complete lifetime support for your analyzer. Our services range from installation and commissioning to supplying high quality spares and arranging scheduled servicing: visit our Service Network pages to find out more.
