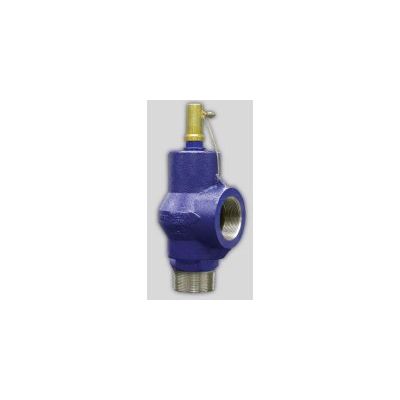

Vapor - Model 8400 Series -Safety Relief Valve

The 8400 Series Vapor Valve provides pressure relief in applications where hazardous vapors are to be piped away. The Vapor Valve is a non-ASME code valve, and specifically addresses low-pressure applications (below 15 PSIG). The valve uses a spring which directly opposes system pressure. A fully-guided, stainless steel disc senses the system pressure. If the system pressure ever reaches the valve`s determined set pressure, the disc will release from its seated position, venting system pressure.

• Glycol Reboiler Safety Relief, BTEX Safety Relief, Tank Blanketing, and Vessel Safety Relief below 15 PSIG
