Elettromeccanica DeltaModel VMM -Safety Solenoid Valves

SHARE

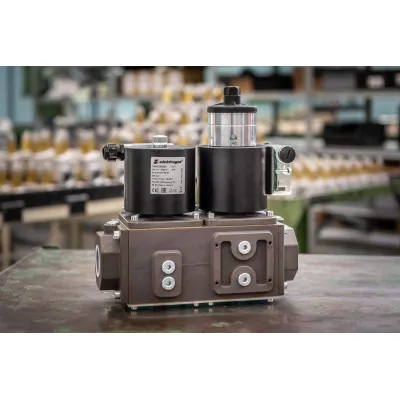

The VMM-type valve houses two solenoid valves in one body. The first safety valve is fast-opening, and the second is fast or slow.  An optional third valve, fast or slow opening, can be connected to the side, with function of bypass or pilot valve. VMM is suitable for gas or air-blocking, two stage operation, adjusting controls in atmospheric or fan-assisted burners, industrial kilns, and all gas equipment that uses regulating trains.

Most popular related searches

Material/Connections

  • AlSi Rp3/4 … Rp 2
  • AlSi DN40 … DN80

Operating pressure

  • 0 … 200 mbar
  • 0 … 360 mbar
  • 0 … 500 mbar

Gas type

  • Air and non-aggressive gases (Family 1-2-3, EN 437)
  • Special version for Biogas/COG
  • Special version for Hydrogen (H2)

Approvals

  • CE approved
  • FM approved
  • EAC approved
  • Australian Gas Mark
