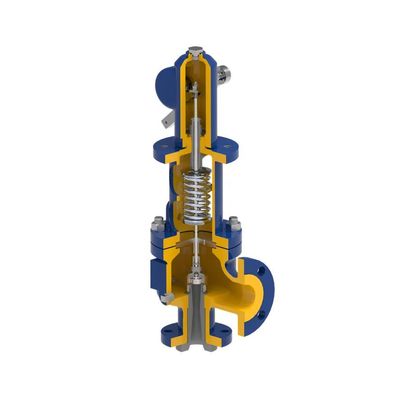

Zetkama - Model zARMAK Fig. 600 -Safety Valve
Material: Cast steel, cast stainless steel. Nominal pressure: ANSI class 150, 300L, 300, 600. Nominal diameter: 1"-8". Temperature range: -196…+538°C.
Most popular related searches
industrial water industry
industrial water
petrochemical industry water
water industry
industrial safety
sewage water
sewage
- safety valve acc. to API std. 526
- inlet flange ASME class: 150, 300, 300L, 600
- coefficient of discharge 0,718 for liquids with UV and CE marking
- min. set pressure with UV marking: 1,0 bar (15 psi); without UV marking (only CE marking) 0,5 bar (7,25 psi); bellow type – depending on the size and class of the valve
- certification UV mark (ASME Section VIII and XIII); CE mark (PED); UKCA acc. PE(S)R2016
- Industry
- Shipbuilding industry
- Chemical industry
- Petrochemical industry
- Sewage
- Glycol
- Industrial water
- Diathermic oil
- Industrial oils
- Power engineering
- Oil
- Hydrocarbons
- Pharmaceutical industry
