Safpak - Model 2767B -Outer Container Drum

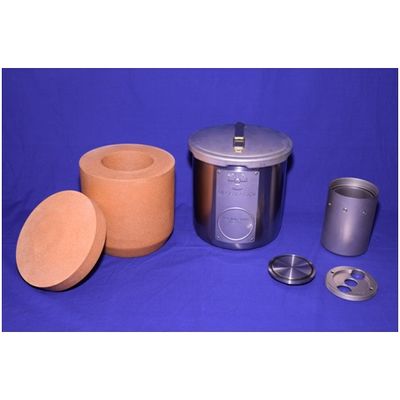

The SAFPAK consists of an Outer Container Drum (Design No 2767) which carries a resealable Inner Container (Design No 2775) within insulating and shock absorbing cork packing. The Outer Container Drum has a pressed stainless steel body with a bayonet closing action stainless steel lid. The Inner Container is a resealable stainless steel containment vessel. Cavity: 84mm x 121mm.
Package Type
Designed as a Type B(U) Package to the IAEA Regulations for the Safe Transport of Radioactive Material.
Certification
Pending. Previously certified by the UK Competent Authority as a B(U) Package, this approval is being processed under the current SSR-6 2012 regulations.
Validations may be available for other countries.
Containment
The resealable Inner Container provides the containment system for the package. The lid of the container has an O-ring seal with an interspace between the O-ring seals; the interspace facilitates leak testing to ensure that the seals achieve the prescribed levels of leak tightness.
To reduce the possibility of contaminating the resealable Inner Container, primary containers such as screw top cans or capsules are normally used to carry the contents, securely packed to prevent internal displacements under normal conditions of transport.
Approved Contents
Specifically intended to cover samples and/or small quantities of radioactive material in solid form (generally elemental oxide or carbide) consisting of separate radionuclide or mixtures of the following radioactive material:
- Fissile excepted quantities of Plutonium and Uranium
- Americium and Curium
- Plutonium/Uranium or Americium/Beryllium neutron sources
- Maximum heat emission of the contents is not to exceed 5 watts
Modes of Transport
By road, rail, sea, air and inland waterway.
