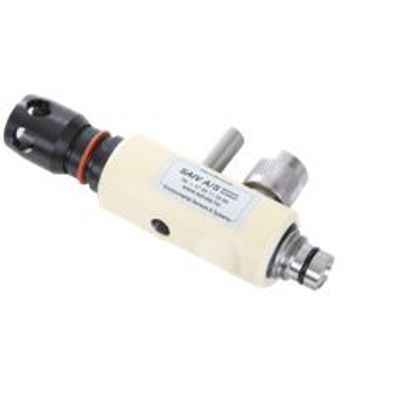

Saiv - Model 205 -Oxygen Sensor
The SAIV Oxygen is a probe that is built on Oxyguard dissolved oxygen probe. The sensor i s a membrane-covered galvanic cell that generates its own voltage(clark-cell). The SAIV oxygen probe is designed to fit the SAIV SD204 and SD208 CTD instruments without any extra cables or units. The SAIV oxygen sensor is easy to add to the SD models. It can operate in lakes and oceans at depths up to 6000 m.
The oxygen sensor is an electro chemic sensor and need daily calibration in air. The SD204 and SD208 has a build in calibration option, that can do the calibration with a few commands. The SAIV205 oxygen work very well with the APB5 (Automatic CTD profiler) since it will be automatic calibrated every day by the APB5 system.
It is possible to use the SAIV205 together with OSU106 that can have 2 more sensors additionally to the SAIV205.
