Salher
SALHER - Model UF-AUT -Ultrafiltration Compact Water Reuse Plants
FromSalher
For the reuse of wastewater, rainwater and treated water by means of highly efficient membrane systems, Salher designs compact water reuse plants using ultrafiltration technology. It can be used for treated wastewater from urban population centers (sewage and grey water) and automatic vehicle cleaning.
Most popular related searches
water recycling plant
water recycling
tertiary water treatment
raw water tank
ultrafiltration system
ultrafiltration
water ultrafiltration system
raw water
hollow fiber
tubular membrane

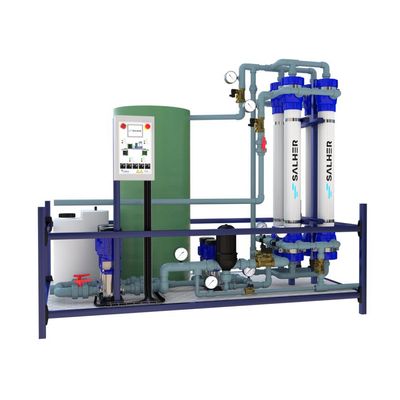

The Salher reuse plants that include this system are equipped with ultrafiltration modules with reinforced hollow fiber hydrophilic tubular membranes with a pore size smaller than 0.1 microns, a cleaning system with a raw water tank, a reagent tank, a dosing system and control of disinfectant agent, compressor and cleaning circuit pump, a feeding system to the filtration modules, a safety pre-filter, instrumentation such as flowmeters, sensors, connections and fittings, the electrical panel with automaton or manual control and the GFRP skid with hydraulic and electrical interconnection of the different elements.
- Membrane Material: PVDF modified
- Active Membrane Area: 38 m2
- Inlet / Outlet: dn32
- Pores Size (Microns): <0,1
- Fiber Id / Od: 0.6/1.22 mm
- Filtration Type: Outer /Inner
- Diameter: 160 mm
- Length: 1730 mm
- Structure Material: ABS
- Fixation Material: Epoxy
