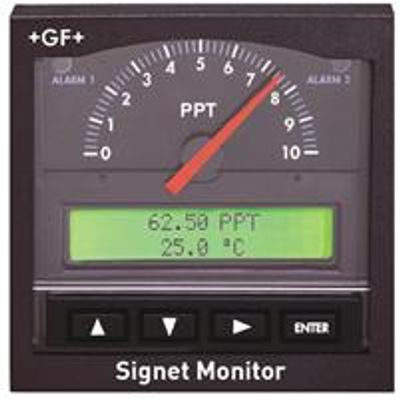

+GF+ SignetModel 5900 ProPoint™ -Salinity Monitor

SHARE

The Signet 5900 Salinity Monitor utilizes conductivity sensors to provide direct reading, including calibration, of salinity in parts per thousand [PPT]. Equipped with a scaleable A to 20 mA output and two programmable relays, the monitor requires 12 to 24. Volts, AC or DC, and is compatible with Signet 10 cm-1 or 20 cm"` conductivity cells. Temperature is selectable for display in either °C or °F, and compensation is automatic. Calibration is simplified with single-point salinity and temperature entry via the wet-cal menu sequence. The four-button keypad arrangement with intuitive software design is user-friendly, and is offered with a hard-coated, high impact, and UV resistant polycarbonate front face. The front panel is rated NEMA 4X/IP65 and an optional splashproof cover is available to protect the back of the instrument.

Most popular related searches
  • Direct reading and calibration in PPT
  • Dual proportional control capability
  • Scaleable 4 to 20 mA output (active) internally powered
  • Two programmable relays
  • Tamper-proof security code
  • Analog and digital display
  • Non-volatile memory
  • Compatible with ALL Signet conductivity electrodes
  • Versatile low voltage power requirement
  • NEMA 4X/IP65
  • Desalination
  • Saltwater Production
  • Aquatic Animal Life Support Systems
  • Aquaculture
  • Environmental Studies
