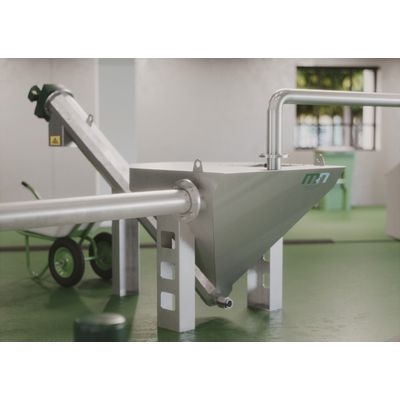

Mellegard & Naij - Model SA -Sand Classifier
FromHydria Water AB
Sand Classifier SA separates, dewaters & conveys sand and heavy particles from water. Street sand, filter sand and similar materials can be handled.
Most popular related searches
sand classifier
sand filter
screening handling
wet waste handling
wet waste
filter sand
waste screening
grit trap
water mixing
screw conveyor
- Modern innovative design on well proven concept.
- Maximum volume and surface enables use as ”combi unit” grit trap.
- Sand washing function can be integrated.
- Easy adaptable screw length, screw type, in & outlet size and position.
- Made of robust thick high quality material.
- Enclosed, safe & hygienic with easy to open access doors.
The sand/water mix is pumped or fed into the separatation tank where sand settles. The screw conveyor dewaters & conveys the sand. Excess water during pumping flows out over a weir and is led out.
- Capacity: 5-30 l/s
- Motored gears: SEW and Nord
- Material: EN1.4301, EN1.4404 or by client demand
