SPECIFICATIONS:
Size: 6" x 4"
Capacity: 36-250m3/h
Head: 5-52m
Speed:600-1400rpm
NPSHr: 2-5.5m
Handling solids: Max. 83mm
Concentration: 58%
Seal arrangements: Packing seal, Expeller seal, mechanical seal

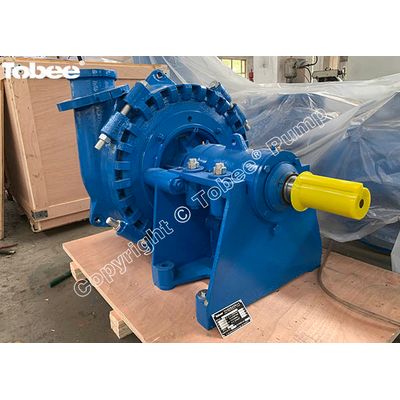

6x4D-G Gravel Pump is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life.
Design Features:
• Horizontal, cantilevered, single-casing structure, centrifugal pump design.
• Wide passage, good performance of NPSH, Anti-wearing and anti-corrosion, high efficiency.
• Cylinder bearing assembly, grease lubrication, adjusting the distance between impeller and pump.
