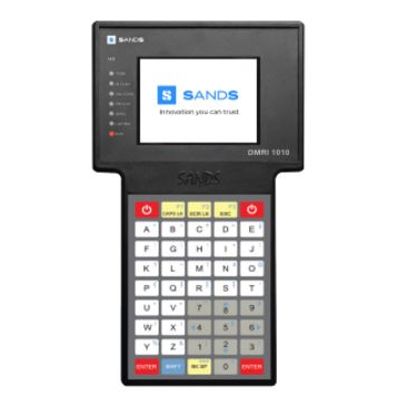

SANDS - Model CMRI 1010 -Common Meter Reading Instrument for Electronic Tri-Vector Meters

SHARE

The Common Meter Reading Instrument (CMRI 1010) is a sophisticated handheld device designed for the efficient download of data from electronic tri-vector meters. It supports multiple communication protocols, including IEC, ANSI, and PACT, and adheres to the IS-15959/DLMS (IEC-62056) standard, ensuring wide compatibility. The device is equipped with a 3.5-inch TFT graphical LCD capable of displaying 15 lines by 40 characters, offering clear visibility and ease of use. Engineered for durability, the CMRI 1010 is rugged enough to withstand drops onto concrete surfaces and is waterproof, making it suitable for various environmental conditions. With a generous memory size of 512 MB, it can store extensive amounts of data efficiently. A key feature is its capacity for high-speed communication and universal report generation, which allows users to produce precise, error-free reports critical for energy accounting and technical loss calculations. Accessories such as various probes and an impact printer enhance its usability.

Most popular related searches

sealing membrane

electronic reporting

concrete waterproofing

Common Meter Reading Instrument (CMRI) is a handheld computer used to download data from electronic tri-vector meters, supporting different protocols like IEC, ANSI and PACT. CMRI is also compliant to IS-15959/ DLMS (IEC-62056) standard. CMRI can be interfaced with the portable printer for spot billing applications.

SANDS CMRI-1010 comes with LCD Graphical (3.5” TFT) & 15 Line x 40 characters visibility. It is rugged to withstand drops onto concrete and be waterproof. CMRI is available with a memory size of 512 MB.

Electronic reports for Static Tri-Vector Meter data
No manual intervention & error-free reports
Universal report generation irrespective of meter make
Reports affecting activities like energy accounting, technical loss. calculation & deriving industry load patterns
HT service meter reports in comparison to the respective Feeder Meter data
Consolidated consumer reports for quick reference to higher-level management
High Speed (HS) communication
Complied with common DLMS S/W

CONTROL UNIT
Operating System: DOS
Memory: RAM ( DDR2 ) – 256MB ,NAND Flash – 512MB,Micro SD Card -16GB

DISPLAY UNIT
Display: LCD Graphical (3.5” TFT)(15 Line x 40 Characters)
Daylight visibility: LED backlit-white

KEYBOARD
Type: Sealed Membrane (Tactile)
Number of Keys: 45 keys (Separate keys for Alphabets and Numbers)
Key Life: 1 million operations

COMMUNICATION
Serial: RS 232 – One Port, 2nd RS 232 port(Optional), Ethernet (Over USB), One port 300 Baud to 115K Baud
Optional interface: GPRS (2G/3G/4G),6LoWPAN /ZIGBEE, BLE 4.0 BLUETOOTH ,GPS, IR/IRDA

CLOCK
Real-Time: MM / DD / YY HH / MM / SS
Calendar: 30 years
Back up battery: Li Battery maintains data integrity for 10 years

BATTERY
Capacity: 5000mAh/2600mAh
Charging port: separate port

PHYSICAL FEATURES
L x W x D: Not exceeding 250 mm x 100 mm x 60 mm
Weight: less than 1 kg
Enclosure: High Strength Moulded ABS

ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Range: 10 Deg to 50 Deg Cel
Storage Temperature Range: 25 Deg to 70 Deg Cel
Relative Humidity: 95% non condensing
