SANDS
4 products found
SANDS products
Meter Reading Products
SANDS - Common Meter Reading Instrument for Electronic Tri-Vector Meters
The Common Meter Reading Instrument (CMRI 1010) is a sophisticated handheld device designed for the efficient download of data from electronic tri-vector meters. It supports multiple communication protocols, including IEC, ANSI, and PACT, and adheres to the IS-15959/DLMS (IEC-62056) standard, ensuring wide compatibility. The device is equipped with a 3.5-inch TFT graphical LCD capable of displaying 15 lines by 40 characters, offering clear visibility and ease of use. Engineered for durability, the CMRI 1010 is rugged enough to withstand drops onto concrete surfaces and is waterproof, making it suitable for various environmental conditions. With a generous memory size of 512 MB, it can store extensive amounts of data efficiently. A key feature is its capacity for high-speed communication and universal report generation, which allows users to produce precise, error-free reports critical for energy accounting and technical loss calculations. Accessories such as various probes and an impact printer enhance its usability.

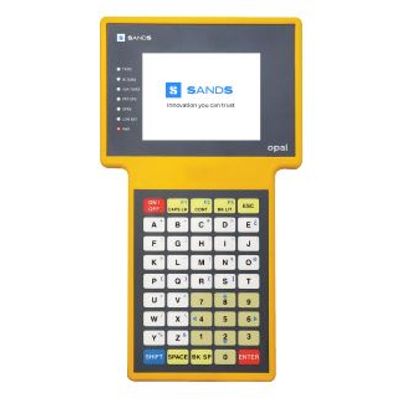

SANDS - Linux Handheld Computer for Meter Data Collection
The OPAL Linux Handheld Computer is a versatile device designed for interfacing with electronic tri-vector meters, offering support for multiple protocols such as IEC, ANSI, and PACT. This handheld computer is particularly useful for applications that require spot billing, as it can easily connect to portable printers. With Linux as its operating system, OPAL provides a range of memory options from 128 MB to 16 GB, catering to various data storage needs. Key features include generating electronic reports without manual intervention, thereby reducing errors, and ensuring universal report generation regardless of the meter's manufacturer. Specialists in energy management can leverage this tool for tasks like energy accounting, technical loss calculations, and analyzing industry load patterns. Additionally, OPAL ensures high-speed communication and conforms to the Common DLMS S/W standards. Its accessories, such as impact printers with RS232/Bluetooth interfaces, complement its utility in field applications.Meter Testing Products
SANDS - Single Phase Portable Reference Standard Meter
The Single-Phase Portable Reference Standard (SPRS) is a compact meter test equipment designed to calibrate the error in single-phase energy meters. It uses clamp-on mode and supports both static and electro-mechanical meters. The SPRS can measure voltage, current, energy, phase angle, and more for the meter under test (MUT). The base unit and wireless display communicate via Bluetooth for easy and safe operation. Additionally, it can be connected to a PC for analysis and has the capacity to store 2000 test results.
