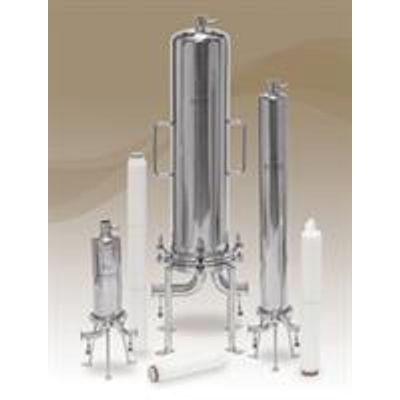

Shelco MicroVantage - Model SFH Series -Sanitary Cartridge Housings for Critical Process Applications
FromShelco Filters
Constructed of heavy duty 316L Stainless Steel for maximum durability. Standard 25 RA internal surface finish and 32 RA external surface finish. Removable bottom plate allows complete access to all internal surfaces for easy cleaning and sanitization. Equipped with 226 or 222 cartridge connectors. Maximum operating pressure: 150 PSI (10 bar) @ 225°F (107°C). In-line and T-style designs equipped with sanitary ferrules for the inlet, outlet, drains and vent connections. Optional Sampling Valve kit designed for easy connection and use.
Most popular related searches
cartridge housing
security seal
process fluid
sampling valve
drain vent
sanitary valve
ultrapure water
pharmaceutical water
sample processing
sampling kit
- Designed for critical applications r equiring high purity and durability
- All wetted parts are 316L Stainless Steel electro-polished with standard 25RA internal finish and 32RA external finish.
- In-line single cartridge design
- Tri-clamp closure for easy cartridge change-outs
- Ideal for vent applications
- T-style housing design
- Available for 1 through 21 cartridges
- Tri-clamp closure for single cartridge housing
- Swing bolt closures for rugged design and secure sealing
- Removable bottom seal plate allows ease of cleaning
- Available with 226 or 222 style cartridge connectors
- 1 ½" TC Gauge Port and ½" TC vent and drains are standard
- Optional Sanitary Twist Valve is available for easy sampling of process fluid
- Ultrapure Water
- Food & Beverage
- Fine Chemicals
- Wine/Beer
- Electronics
- Vent
- Pharmaceuticals
- DI Water
- Maximum Operating Pressure
- 150 psig (10.3 bar) @ 225° F (107° C)
- Inlet and Outlet Connections
- Inlet /Outlet: Tri- Clamp
- Drain Ports: 1/2" Tri-Clamp
- Gauge Port with Vent: 1 1/2" Tri-Clamp with 1/2" Tri-Clamp
- Materials of Construction
- Head and Shell: 316L Stainless Steel
- Connections: 316L Stainless Steel
- Closure: 316L Stainless Steel
- Mounting Legs: 316L Stainless Steel
- Gaskets
- Silicone
- Optional: EPR, Viton, Teflon, Teflon Encapsulated
- Silicone and Teflon Encapsulated Viton
- Finish
- Internal surfaces: 25RA Electro-polished
- External surfaces: 32RA Electro-polished
- Cartridge Type
- 222 or 226 cartridges (maximum 2 3/4" OD)
- Custom Options
- Sanitary Twist Valve’s for vent and drains
- See Ordering Guide for complete listing
