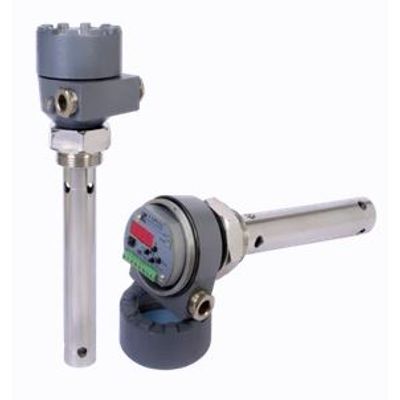

Sapcon CAPVEL - Model ICT -Capacitance Level Transmitter for Liquids & Slurries
It measures the capacitance between 2 terminals, the sense rod and the ground terminal. The metallic tank wall acts a ground terminal. In case of non-conductive tanks, a still well is used to provide a ground reference.
Most popular related searches
capacitance level transmitter
level transmitter
capacitance level sensor
level transmitter measurement
oil level sensor
water storage silo
level sensor
water tank
water storage tank
capacitive sensor
Capacitance based Level Transmitter (For Conductive or Non-Conductive Liquids, Slurries, Powdered Compounds, Food Grains)
- Power Supply: 9-30V DC
- Application Temperature Range: Up to 350°C
- Output: 4-20mA, Modbus-RTU (RS-485)
- Rod Probe up to 3.5m & Rope type probe for 1m to 15m
- Process connection: Screwed, Flange & Tri-Clamp
- Probe length: 100 mm to 15m
- Certifications: Flame Proof IIC & IP65 Housing
Cement Manufacturing Process
Continuous monitoring of liquids to check level at certain period of time.
- Gear Boxes
- Water Tanks
- Storage Silos
Oil
Capacitance level sensor with still well arrangement makes it appropriate where turbulence is the main concern.
- Edible Oil
Mills
Capvel-ICT is also useful in mills to detect the level of powders.
- Flour Mills
- Rice Mills
- Pulses Mills
