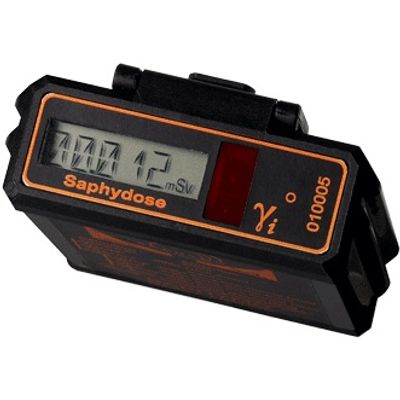

Saphydose - Model Gamma i -Isotropic Electronic Dosimeter System
The Saphydose Gamma i is an isotropic electronic dosimeter dedicated to workers exposed to radiation. This instrument is used for measurement of the Hp(10), dose equivalent for the whole body.
Saphydose Gamma i is an operational dosimeter measuring radiation in real time (Hp (10) X and γ dose).
This dosimeter is designed for people working in a controlled area (nuclear power plant, fuel reprocessing plant, research center, hospital, non-destructive testing service, etc.) or likely to be exposed (army, police, fire brigade, etc.).
It is compliant with the IEC 61526 standard for measurement of personal dose equivalents. Reliable and ergonomic, the Saphydose Gamma i is appreciated for its sturdy aluminum housing, its high resistance to electromagnetic fields and its long time battery life. It can be used individually or as part of our dosimetry management system.
Reasons to choose Saphydose gamma i
- 40,000 devices in operation worldwide
- Up to 8,000 hours of autonomy
- High shock resistance
- Compact
- High immunity against electromagnetic interference
Compliant with use in nuclear facilities
- Saphydose Gamma i complies with the IEC 61526 standard for measurement of personal dose equivalents. There are more than 40,000 devices in operation worldwide
Robust
- Saphydose Gamma i has a high immunity against electromagnetic interference, as well as a robust shockproof aluminum box
Low maintenance costs
- Saphydose Gamma i has a very long battery autonomy: more than 4 years with 2 AA batteries
Versatile
- Saphydose Gamma i can be used alone, or integrated into an operational wireless dosimetry system
Radiation type
- X and Gamma
Detector type
- 2 energy-compensated silicon diodes
Dose measurement range
- From 1 µSv to 9999.99 mSv
Dose rate measurement range
- From 0.5 µSv/h to 5 Sv/h
Energy range
- From 50 keV to 7 MeV
Alarms
- Sound and visual
Display
- 5 scrolling alphanumeric character LCD screen
Battery lifetime
- 8000h of operation with 2 batteries
Memorization
- Recording of dose and dose rate history
Operating temperature
- From – 20 to + 50 °C
Hermeticity
- IP 65
