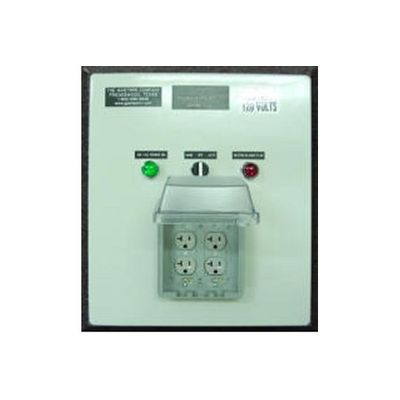

Sarape - Cylinder Heating Blanket Control Panel
The SARAPE control panel is designed for automatic blanket control as ambient temperature drops and rises. The control panel automatically turns the SARAPE blankets on as the ambient temperature drops below 60º degree (F) and turns the blankets off as ambient temperature rises above 75º degree (F).
The panel gives lighted indication of supply voltage power and blanket on status. The HOA selector switch allows hand (direct control), off (all blankets off), and automatic (ambient temperature control). The panel is NEMA 4X rated non-metallic FRP for outdoor service in corrosive areas. Panels are available for two, four or multiple cylinder applications. Other options include adjustable thermostat controls. Consult factory for option details.
CONTROL PANEL FUNCTIONS
- H-O-A CONTROL SWITCH
- HAND (DIRECT CALL FOR SERVICE)
- OFF (ALL BLANKETS OFF)
- AUTO (CONTROLLED BY AMBIENT TEMPERATURE SENSOR)
INDICATION LIGHTS
- WHITE: AC POWER SUPPLY ON
- RED: HEATING BLANKETS ON
- NON ADJUSTABLE AMBIENT TEMPERATURE SENSOR ON OFF RA BLANKETS ON: AMBIENT TEMPERATURE DROPS BELOW 60° F. BLANKETS OFF: AMBIENT TEMPERATURE RISES ABOVE 75° F. SENSOR LOCATED ON SIDE OF CONTROL PANEL.
- DIRECT CYLINDER TEMPERATURE SENSOR ON/OFF RANGE BLANKETS ON: CYLINDER TEMPERATURE DROPS BELOW 90° F. BLANKETS OFF: CYLINDER TEMPERATURE RISES ABOVE 105° F.
- OPTIONAL BLANKET OVER HEAT OR FAULT INDICATION.
