SAXON - Brake and Suspension System Testing

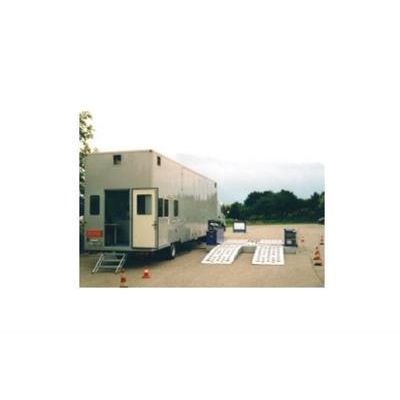

The mechanical parts have a min. height of 280 mm as seen from floor level. For straight levelling there is a hydraulic system which enables you to compensate deviations up to 100 mm in forward and side directions. The ramps are self fitting to it’s surrounding uneven surface area. The standard test width is 700 mm on the inside and 3000 mm on the outside. Due to the special design of the ramps, vehicles with a chassis ground height of 150 mm as well as wheel diameters between 12“ and 44“ with even thick profiled tyres, can be tested.
