Scattering Plate

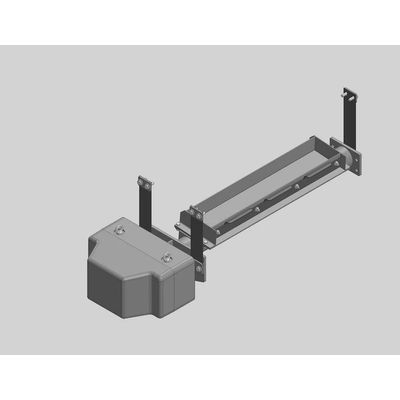

The inclined plate is arranged underneath a bin and is agitated to vibrate in longitudinal direction. This causes the material to flow. It is conveyed via a polished plate to the edge, where the materials falls in a curtain-like fashion. An even distribution is obtianed by minimizing the falling height between scattering plate and downstream surface.
IFE electromagnetic drive
robust and enduring
The IFE electromagnetic drive and scattering plate form a vibrating system consisting of two masses. The excitation of the vibration is made by the pumping force of the magnet being connected to the mains via an IFE control unit. The amplitude of the vibration can be controlled infinitely variable while in operation.
These electromagnetic drives are manufactured for robustness and are dust- and splashproof due to the total enclosed design.
nominal width: up to 3000 mm
driven: by IFE electromagnetic drive
- constant feed
- uniform and even material curtain
- long lifetime
- low power consumption
- low maintenance
- low noise level
