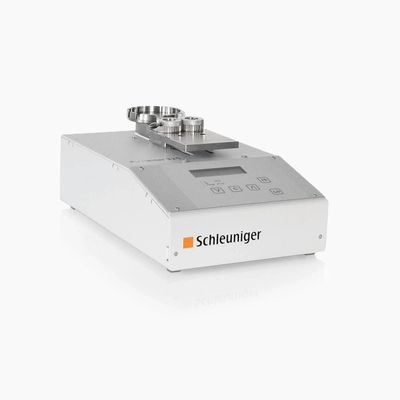

Schleuniger PullTester - Model 325 -Benchtop Pull Testing Machine
The triple-range PullTester 325 analyzes pull-off forces of up to 200 N (45 lbf), 1,000 N (225 lbf), and 2,000 N (450 lbf) for crimp/welded connections with different pull rates. The benchtop PullTester 325 measures pull forces of crimp and welded connections or many other possibilities. With the triple-range capability of 200 N (45 lbf), 1,000 N (225 lbf), and 2,000 N (450 lbf), the PullTester 325 can cover a wide variety of testing applications.There are two versions available with different selectable pulling rates:The PullTester 325-25 operates at pulling speeds of 25 or 50 mm/min (0.98 or 1.97"/min).The PullTester 325-50 has pulling speeds of 50 or 100 mm/min (1.97 or 3.94"/min).Both versions are equipped with a speed-controlled motor to ensure repeatability and accuracy. Pull forces can be measured in pound-force, Newtons, or kiloponds. The standard 14-position terminal holder serves a wide variety of terminals; more holders are available upon request.
PullTester 325
Metric
Analysis software: WinCrimp
- Pull-out speed, quantity: 2
- Additional equipment: various holders
- Power source: Electric
- Memory capacity: N/A
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: RS 232 connection directly to printer or via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: normal pull test until wire breaks
- Stroke max.: 43 mm
- Pull-out speed: 25 / 50 mm/min
- Pull-out speed 2: 50 / 100 mm/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 325 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 410 mm
- Dimensions/length: 250 mm
- Dimensions/width: 130 mm
- Weight: 11 kg
- Temperature operation: 0 - 50 °C
- Protection class: IP 20
- Measurement range / force sensor: 2000 N
- Measurement range N min.: 0 lbf
- Measurement range N max.: 44 / 220 / 440 other variations available by special order
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: LCD 6-digit
- Data interface: RS 232
- Unit of measurement: Newton (N), kiloponds (Kp), pound force (lbf.)
Imperial
- Analysis software: WinCrimp
- Pull-out speed, quantity: 2
- Additional equipment: various holders
- Power source: Electric
- Memory capacity: N/A
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: RS 232 connection directly to printer or via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: normal pull test until wire breaks
- Stroke max.: 1.69 in
- Pull-out speed: 0.98 / 1.97 in/min
- Pull-out speed 2: 1.97 / 3.94 in/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 325 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 16 in
- Dimensions/length: 10 in
- Dimensions/width: 5 in
- Weight: 24 lb
- Temperature operation: 32 - 122 °F
- Protection class: IP 20
- Measurement range / force sensor: 440 lbf
- Measurement range N min.: 0 lbf
- Measurement range N max.: 44 / 220 / 440 other variations available by special order
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: LCD 6-digit
- Data interface: RS 232
- Unit of measurement: Newton (N), kiloponds (Kp), pound force (lbf.)
