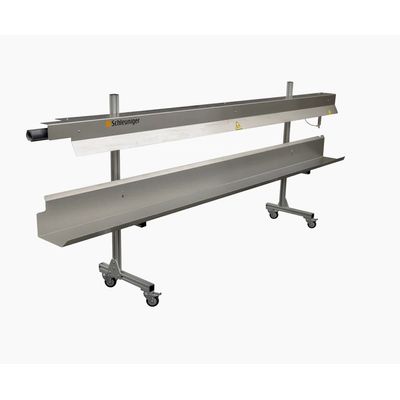

Schleuniger WireStacker - Model 1000 -Passive Stacking Machine
FromKomax AG
Low cost solution allowing unattended operation. WireStacker 1000 stack wire up to a length of 3.0 m (10 ft.). Greatly reduces labour involved in handling long wires. Passive design built for almost unlimited and trouble free cycles. Feed through design for handling lengths longer than 3.0 m (10 ft.). Uses dedicated wire stacker interface on the EcoStrip 9300 / 9320,. OmniStrip 9450, PowerStrip 9500 / 9550 and MegaStrip 9600. Extruded aluminium frame and all stainless steel construction Works equally well with short or long wires.
Most popular related searches
WireStacker 1000
Metric
- Noise level: 75 dB
- Raw material length: Up to 3,000 mm (120”), longer lengths possible but cable depending
- CE conformity: The WireStacker 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Height of wire outlet min.: 610 mm
- Height of wire outlet max.: 1060 mm
- Wire diameter max.: 25 mm
- Compressed-air connection: 6 bar
- Dimensions/length: 3000 mm
- Dimensions/width: 470 mm
- Dimensions/height: 1170 mm
- Weight: 55 kg
- Interfaces: 24 VDC - valve
Imperial
- Noise level: 75 dB
- Raw material length: Up to 3,000 mm (120”), longer lengths possible but cable depending
- CE conformity: The WireStacker 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Height of wire outlet min.: 610 in
- Height of wire outlet max.: 1060 in
- Wire diameter max.: 1 in
- Compressed-air connection: 90 psi
- Dimensions/length: 120 in
- Dimensions/width: 18.5 in
- Dimensions/height: 46 in
- Weight: 117 lb
- Interfaces: 24 VDC - valve
