Schmalz - Layer Gripping Systems
FromJ. Schmalz GmbH

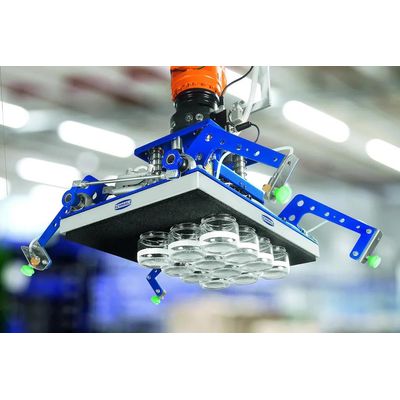

High-performance palletizers for warehousing and intralogistics. Together with capable palletizing robots and gantries, vacuum layer gripping systems from Schmalz increase the production output in the automated handling of products in various industries. Individually planned systems guarantee an optimal process integration and ensure a quick return on investment.
Most popular related searches
- Layer-wise palletizing and depalletizing of a wide variety of goods
- Application in warehousing and intralogistics
- Handling of layers with gaps, mixed layers, intermediate layers, pallets, cardboard and film packaging
- Loading and unloading of partially loaded pallets by combining vacuum technology with mechanical gripping support
- Flange connection STARR Rigid connection to common robots and gantries
- Flange connection FLEX Spring-mounted connection to common robots and gantries

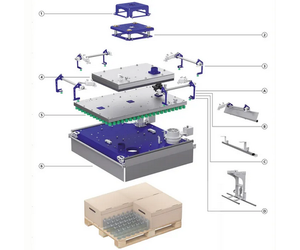

- Various gripper modules
- With intermediate layer handling
- With global vacuum chamber
- With layer detection
- With mechanical clamping
- Suction box with foam For virtually all workpieces, optionally with zoning
- Suction box with suction cups For uneven workpieces, optionally with zoning
- Suction box with skirt For difficult workpieces, with global vacuum chamber

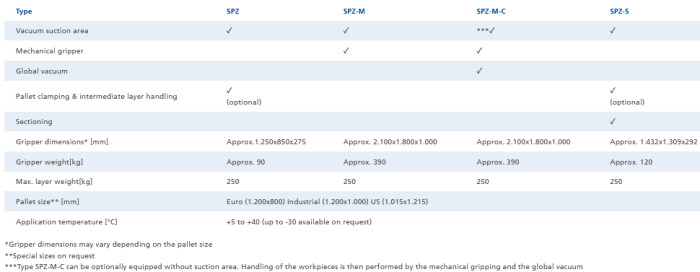

Every layer gripping system can be adapted to individual requirements. The following data are therefore reference values and may vary depending on the application. Suction tests with original workpieces are always required to ensure functionality. They are executed in our test center.
