J. Schmalz GmbH products

Applications: Handling workpieces with a wide range of dimensions and/or undefined positions, Handling workpieces with gaps, Automated palletizing/depalletizing, order picking and sorting of a wide range of workpieces with only one type of gripper, Handling workpieces made from various materials such as cardboard, wood, metal, glass or plastic.

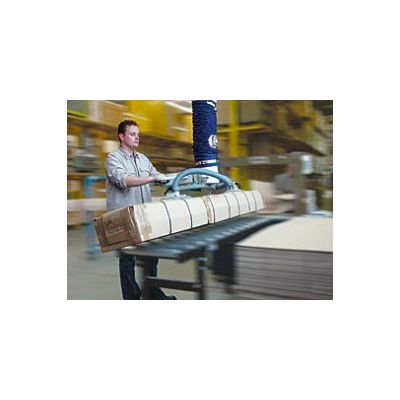

The vacuum tube lifter JumboErgo is equipped with a special rotary handle similar to the gas handle on a motorcycle. Both lightweight and heavy loads can be handled quickly and sensitively with this control element. The workpiece is lowered by `accelerating` and lifted by `decelerating`. The rotation and direction of rotation avoid uncontrolled movements with the lifting device, for example, if the operator slips off the control unit. At the same time, the tube lifter JumboErgo guarantees ergonomic posture at every working height. The movable handlebar permits ergonomic picking of loads at large heights or directly from the floor.

Highlights: Suitable for smooth, grid and console tables, Available with two different valve spaces, Laser-etched markings, Unused vacuum apertures can be sealed with the aid of sealing magnets.

Round flat suction cup for rapid pick & place applications of flat workpieces with a smooth or slightly rough surface. Handling of hot workpieces, such as, plastic, glass or sheet metal parts. Use in handling processes which require low marking handling (HT1) or protection against electrostatic discharge (NBR-ESD).

Round, flat suction cup for handling of flat workpieces with smooth or slightly rough surfaces. Handling of hot workpieces (HT1, SI, FPM). Low marking and antistatic handling of sensitive workpieces (HT1 and AS versions).

Oval suction cup for handling of elongated workpieces, including curved objects, such as sections, pipes, packaging materials. Handling of frame elements, such as doors and windows. Considerably higher suction force than round, flat suction cups when handling narrow workpieces.

Oval suction plate for handling of elongated, narrow workpieces such as sections or door and window frames. Considerably higher suction force than round, flat suction cups with long, narrow workpieces. SPLO 100x32-TV and SPLO 300x100-TV available with touch valve to detect presence of workpieces. SPLO 100x30 to SPLO 300x100 with long sealing lip for handling very curved workpieces.

High-performance palletizers for warehousing and intralogistics. Together with capable palletizing robots and gantries, vacuum layer gripping systems from Schmalz increase the production output in the automated handling of products in various industries. Individually planned systems guarantee an optimal process integration and ensure a quick return on investment.

Schmalz individually designs vacuum suction spiders for your application needs. The vacuum suction spiders have been designed according to a modular principle. All versions of the vacuum suction spider are derived from the basic design which can be flexibly optimized for complex handling tasks. Our experienced system consultants also use individual vacuum components from our broad range of products.

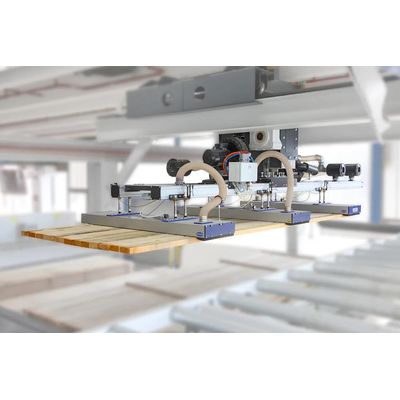

Variable length and width layer gripper.
