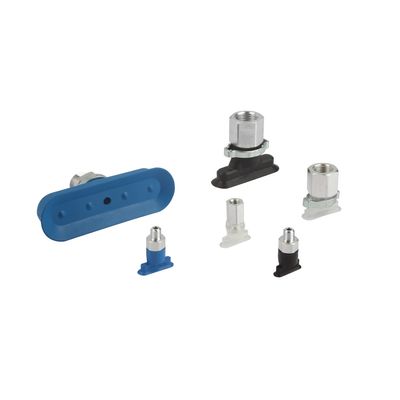

Schmalz - Model SGON -Flat Suction Cups

SHARE

Oval suction cup for handling of elongated workpieces, including curved objects, such as sections, pipes, packaging materials. Handling of frame elements, such as doors and windows. Considerably higher suction force than round, flat suction cups when handling narrow workpieces.

Most popular related searches
vacuum suction cup
automation component
pipe profiling
pipe handling
  • Flat suction cups in oval design for long workpieces (profiles, pipes) or flat workpieces with webs
  • Two-ear clamp prevents unintentional twisting during use (from size 24 x 8 mm)
  • High suction force with small dimensions
  • Support surfaces on the bottom prevent permanent deformation of thin-walled workpieces

  • Robust, wear-resistant suction cup SGON (3) with single sealing lip, consisting of suction cup SGO (2) and connection nipple (1)
  • Nipple plugged into cup
  • From size 24 x 8 mm, the suction cup is additionally secured with a two-ear clamp (anti-rotation device)
  • With each nipple family, the replacement cups and nipples can be combined as desired

  • Dimensions: 4 x 2 to 90 x 30 mm
  • Material: HT1, NBR, NBR-ESD, NBR-CO, SI, SI-HD
  • Additional anti-rotation device from size 24 x 8 mm
