Scinomix - Model VXi -Bulk Tube Handler

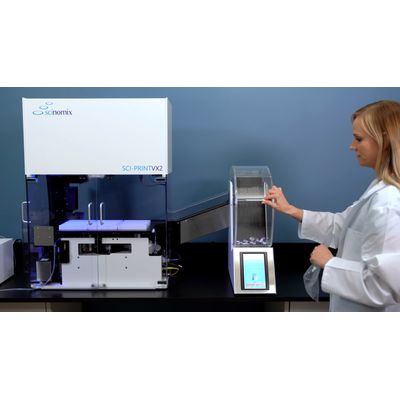

The Scinomix VXi eliminates hand loading of tubes into racks to provide even more time savings. The VXi can process a wide variety of tubes (8mm – 27.4mm), orienting them using optical technology. It pairs with the VX Series tube handling systems, the Sci-Print VX2 and the Sci-Print VXL, for a variety of functions including printing and labeling, filling, uncapping/recapping of screw top lids, and barcode scanning.

FEATURES

• Pairs with a Scinomix VX labeler to receive and process bulk tubes
• Adapts to a wide range of tube types and sizes
• Handles tube diameters from 8mm to 28mm (contact Scinomix for sample verification)
• Throughput up to 400 tubes per hour
• Handles internally and externally threaded tubes as well as capped and uncapped tubes
• Optional hopper extension to increase tube capacity
• User-friendly software accessibility via an LCD screen which offers quick and easy access to settings
• With a camera, optical technology is used to detect tube orientation to aid in the delivery for labeling and racking

BENEFITS

• Easy for staff to operate
• Eliminates tedious & time-consuming tasks
• Gain valuable walk-away time
• Handles multiple tube types with the same system
• Increased ROI for labs/ opportunity cost
• Increases productivity and efficiency in the lab
• Purchase tubes in bulk for cost-savings
• Racking and reusability for time-savings
• Small, benchtop equipment saves valuable space in the lab

• Network Requirements: Ethernet cable supplied
• Provided Power Supply: Output Voltage: 24 V DC
• Air Requirements: 80-90 PSI @ 1CFM, air supply must be oil/contaminant free, w/ an inline regulator & air dryer
• Transport and Storage Temperature: -20 degrees C to +55 degrees C (20% to 80% non-condensing)
• Operating Environment: (Indoor use only)
  Temperature: 10 degrees C to 40 degrees C
  Humidity: 20% to 80% non-condensing
  Altitude: Up to 2000M
• Physical Dimensions: Height: 21.7" (550mm), Width: 13.9" (353mm), Depth: 20” (507mm), Weight: 52 lb. (24KG)
• Hopper Capacity: Contingent on tube type/size being used. For reference, the hopper can hold up to 600 Cryovials.
• Tube Specifications: Volume Range: 0.4 mL to 20 mL, Height: 34 mm to 120 mm, Diameter: 8 mm to 27.4 mm
