Aljon - Model 580 CL -Scrap Equipment

The Industry-Leading Workhorse of Scrap Material

Maximum Power Output

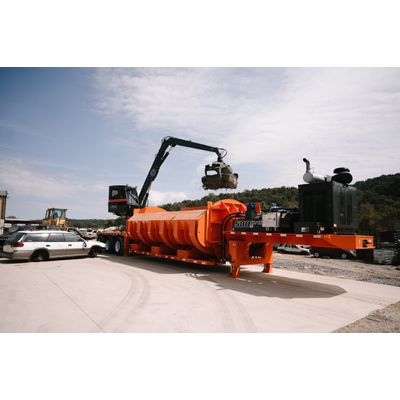

The Aljon 580CL is a full featured twin-ram car logger/baler and is capable of efficiently processing 20-25+ complete end of life cars, vans, and pick-ups (including engines, transmissions, and running gear) per hour. Power for the machine is provided by a proven Volvo-Penta Tier 4 Final diesel or by an electric motor. The comfortable climate controlled cab is equipped with Aljon’s exclusive monitoring system that allows the operator to monitor machine functions as well as see the baling function in real time. Ask us about additional options to further enhance its operational productivity!

• Proudly designed and built in the USA
• Operator friendly with safe and easy access to comfortable, high visibility operator cab
• Comprehensive service & parts inventory available for immediate shipment
• No regen on standard Tier 4 Final Volvo Penta diesel
• Options available to improve productivity
• Strong reputation with 800+ manufactured since 2004 with most still running
• Forms bale in middle of chamber for easy removal with lower lift from ground to bale chamber
• Onboard computer dashboard monitors baler productivity, machine, and engine functions
• Financing available at competitive rates
• Available options include remote control, auto lube, and window guard

(Nominal) Dimensions With Material Handler

• Length: 16.25 m / 53 ft.
• Height: 4.1 m / 13 ft 6 in.
• Width: 2.59 m / 8 ft 6 in.
• Weight (with crane): 44225 kg / 97,500 lbs
• Weight(craneless): 42,637 kg / 94,000 lbs

Open Chamber

• Length: 5.8 m / 19 ft 3 in.
• Width: 3.1 m / 10.1 ft.
• Height “L”: 1.1 m / 3.6 ft.

Bale Size

• Length: Variable
• Width: 1.01 m / 40 in.
• Height “L”: 0.635 m / 25 in.

Production

• Complete Car Bodies: 20-25+/hr.
• Scrap Metal (avg): Up to 25 tons per hour

Tank Capacities:

• Diesel Fuel: 151 liters / 40 gallons
• Hydraulic Fluid: 454 liters / 120 gallons

Power Unit

• Volvo Tier 4 (24Vdc)
• 215 HP for standard unit with crane; 185 HP for craneless models
• 150 HP Electric Motor with VFD Starting System

Warranty

• Full machine coverage for 1 year / 2,000 hours warranty
• Structural coverage for 2 years / 4,000 hrs
• Volvo Tier 4 coverage for 5 years / 10,000 hours

Additional Notes:

• Routine machine service and maintenance points are easily accessible and engineered to be serviced safely and quickly.
• Many components or spare parts can be sourced locally. Service will be provided by the full resources of Aljon’s parts and service department in the USA.
• Several available options include remote control, auto lube, and window guard.
