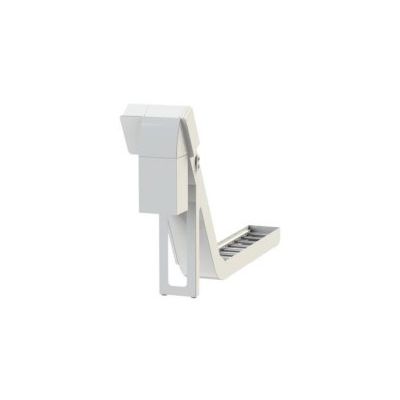

KNOLL - Model K -Scraper Belt Conveyor
KNOLL scraper belt conveyors K are plants for transporting metal chips and small parts. Decentral use on individual and interlinked machine tools. Central use for waste disposal from machine groups and entire production areas. Suitable for short chips (e.g. steel, brass, aluminum, copper, cast). Suitable for wet and dry processing.
Most popular related searches
belt conveyor
scraper conveyor
pump station
conveyor belt
chip conveyor
waste disposal
chip separator system
filter trough
conveyor system
process pump
- Safety slide coupling
- Extraction of the cooling lubricant from the trough
- Edge filter in the trough in front of the suction line
- Simple layout
- Customer-specific design
- Effective overload protection
- High delivery rate possible
- Good chip pre-separation
- Easy to service
- Best-possible addressing of requirements
Main functions
- Collection of the chips/parts
- Transporting of the chips/parts to the discharge point on the container bottom
Additionally for wet processing
- Collecting of the cooling lubricant
- Separating of chips and cooling lubricant
- Buffering of cooling lubricant
- Transporting of the cooling lubricant for processing, return pumping station or machine
Continuous scraper belt
- 2 roller chain strands that are connected to scraper bars
- Positively-driven chain circulation
- Tensioning through easy adjustment of the bearing retainers
Combination possibilities
For other requirements, on request we can combine the conveyor with
- Filter systems for cleaning the cooling lubricant and supplying the machine tool
- Chip reducers for generating pumpable or absorbent chips
- Return pumping stations for transporting chips and cooling lubricant to the central plant
- Extraction stations for transport of chips to the central plant
