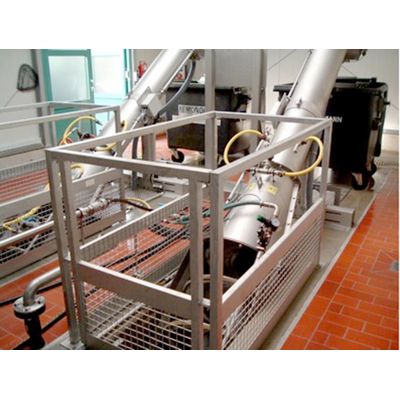

FSM - Screw Screen

The waste water flows through a perforated basket. The installation angle is 35° or 90°. The basket is fixed and cleaned by a rotated screw with a cleaning brush. The screening is transported, washed and compacted by one screw. This design guaranteed that no screening can pass the screen by “carryover” effect.

The screw is designed in the dewatering zone  with shaft to reduce the wear and prevent a blockage. Perforation for the screen basket is from 2 mm up to 10 mm. The cleaning of the basket is performed by a brush. The drive is realized by a gear motor at the top.

Applications in municipal and industrial clarification plant

• waste water pre-treatment / fine screening
• sludge screening / secondary sludge
• sludge screening / primary sludge
• fecal matter reception and treatment

Industrial applications

• textile and textile finishing industry –preliminary clarification of total waste water
• meat, fish and poultry processing / slaughterhouses – preliminary clarification of total waste water
• sugar industry - preliminary clarification of total waste water
• fruit and vegetable processing – preliminary clarification of total waste water
• breweries– preliminary clarification of total waste water

• High reliability through robust construction
• No additional cleaning systems
• Screenings conveyed positively to the discharge point
• Excellent cost/performance ratio
• Low maintenance costs
• Suitable for outdoor sites / operation in winter
• Easily adapted to suit changed operating conditions
• Machine completely hygienically encapsulated

• Screen width for installation 200 to 600 mm
• Perforation 2 – 10 mm, other sizes on request
• Installation angle 35° and 90°, other angles on request
